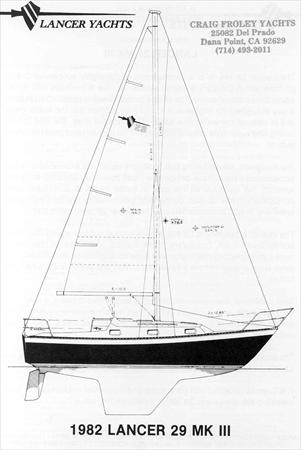

LANCER 29 MK III
Description
7800 lbs. Disp. 3000 lbs. Ballast 23'6" LWL 10' Beam 4'2" Draft
Construction Details
| Designer | Cuthbertson and Cassian |
|---|---|
| Length | 28.670 ft |
The standard boat dimensions
| i | 35 ft |
|---|---|
| j | 12.83 ft |
| p | 30 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35 ft | 12.83 ft | 30 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 35.41 ft - (10793 mm) |
| MidGirth | * 23.09 ft - (7038 mm) |
| Foot | * 23.09 ft - (7038 mm) |
| Perc LP | * 180 |
| Area | * 695 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.82 ft - (9089 mm) |
| Foot | * 17.42 ft - (5310 mm) |
| Leech | * 25.3 ft - (7711 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 14.75 ft - (4496 mm) |
| Deck Angle | * 12 ° |
| Area | * 219.94 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 35.41 ft - (10793 mm) |
| Foot | * 21.08 ft - (6425 mm) |
| Leech | * 32.99 ft - (10055 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 19.24 ft - (5864 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 340.66 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30 ft - (9144 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 31.08 ft - (9473 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.29 ft - (9537 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 154.75 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 35.41 ft - (10793 mm) |
| Foot | * 21.17 ft - (6453 mm) |
| Leech | * 32.58 ft - (9930 mm) |
| Perc LP | * 165 |
| Area | * 562 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 35.41 ft - (10793 mm) |
| Foot | * 22.03 ft - (6715 mm) |
| Leech | * 31.29 ft - (9537 mm) |
| Perc LP | * 149.96 |
| Length Perp | * 19.24 |
| Deck Angle | * 9.03 ° |
| Area | * 340.62 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
