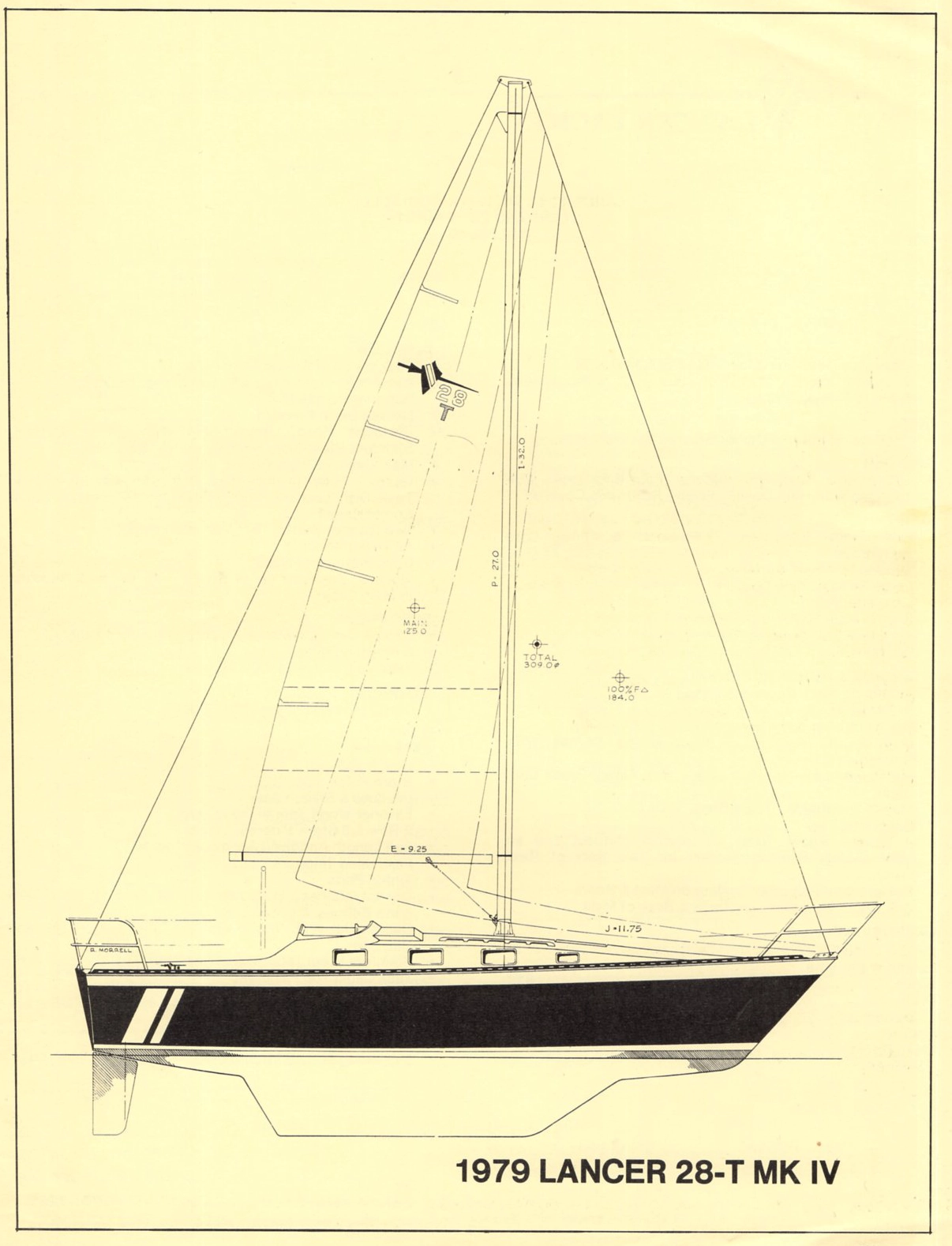

LANCER 28-T MK IV
Description
5200 lbs. Disp. 2600 lbs. Ballast 23'11" LWL 8' Beam 3' Draft
Construction Details
| Designer | W. Shad Turner |
|---|---|
| Length | 27.670 ft |
The standard boat dimensions
| i | 32 ft |
|---|---|
| j | 11.75 ft |
| p | 27 ft |
| e | 9.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 32 ft | 11.75 ft | 27 ft | 9.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 32.38 ft - (9869 mm) |
| Foot | * 19.31 ft - (5886 mm) |
| Leech | * 30.16 ft - (9193 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.62 ft - (5371 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 285.26 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 27.27 ft - (8312 mm) |
| Foot | * 15.96 ft - (4865 mm) |
| Leech | * 23.13 ft - (7050 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 13.51 ft - (4118 mm) |
| Deck Angle | * 12 ° |
| Area | * 184.22 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 32.38 ft - (9869 mm) |
| Foot | * 19.39 ft - (5910 mm) |
| Leech | * 29.79 ft - (9080 mm) |
| Perc LP | * 165 |
| Area | * 471 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 32.38 ft - (9869 mm) |
| Foot | * 20.18 ft - (6151 mm) |
| Leech | * 28.61 ft - (8720 mm) |
| Perc LP | * 149.96 |
| Length Perp | * 17.62 |
| Deck Angle | * 9.02 ° |
| Area | * 285.25 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 9.25 ft - (2819 mm) |
| Leech-AftHdBd | * 28.05 ft - (8550 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 28.23 ft - (8605 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 128.75 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
