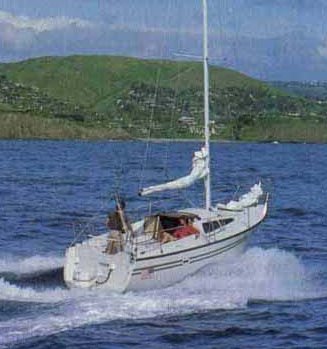

LANCER 27
Description
4600 lbs. Disp. 1700 lbs. Ballast 22' LWL 8'6" Beam 4'3" Draft
Construction Details
| Designer | Herb David |
|---|---|
| Length | 26.580 ft |
| LOA | 26.580 ft |
| LWL | 22.000 ft |
| Beam | 8.580 ft |
| Displacement | 4600 lb |
| Max Draft | 4.300 ft |
The standard boat dimensions
| i | 29.75 ft |
|---|---|
| j | 9.40 ft |
| p | 30 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 29.75 ft | 9.40 ft | 30 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 24.96 ft - (7608 mm) |
| Foot | * 12.42 ft - (3786 mm) |
| Leech | * 21.72 ft - (6620 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.81 ft - (3295 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 134.88 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 29.64 ft - (9034 mm) |
| Foot | * 15.51 ft - (4727 mm) |
| Leech | * 27.27 ft - (8312 mm) |
| Perc LP | * 165 |
| Area | * 345 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30 ft - (9144 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 31.08 ft - (9473 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.29 ft - (9537 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 154.75 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.64 ft - (9034 mm) |
| Foot | * 15.16 ft - (4621 mm) |
| Leech | * 27.9 ft - (8504 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.1 ft - (4298 mm) |
| Deck Angle | * 4 ° |
| Area | * 208.98 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
