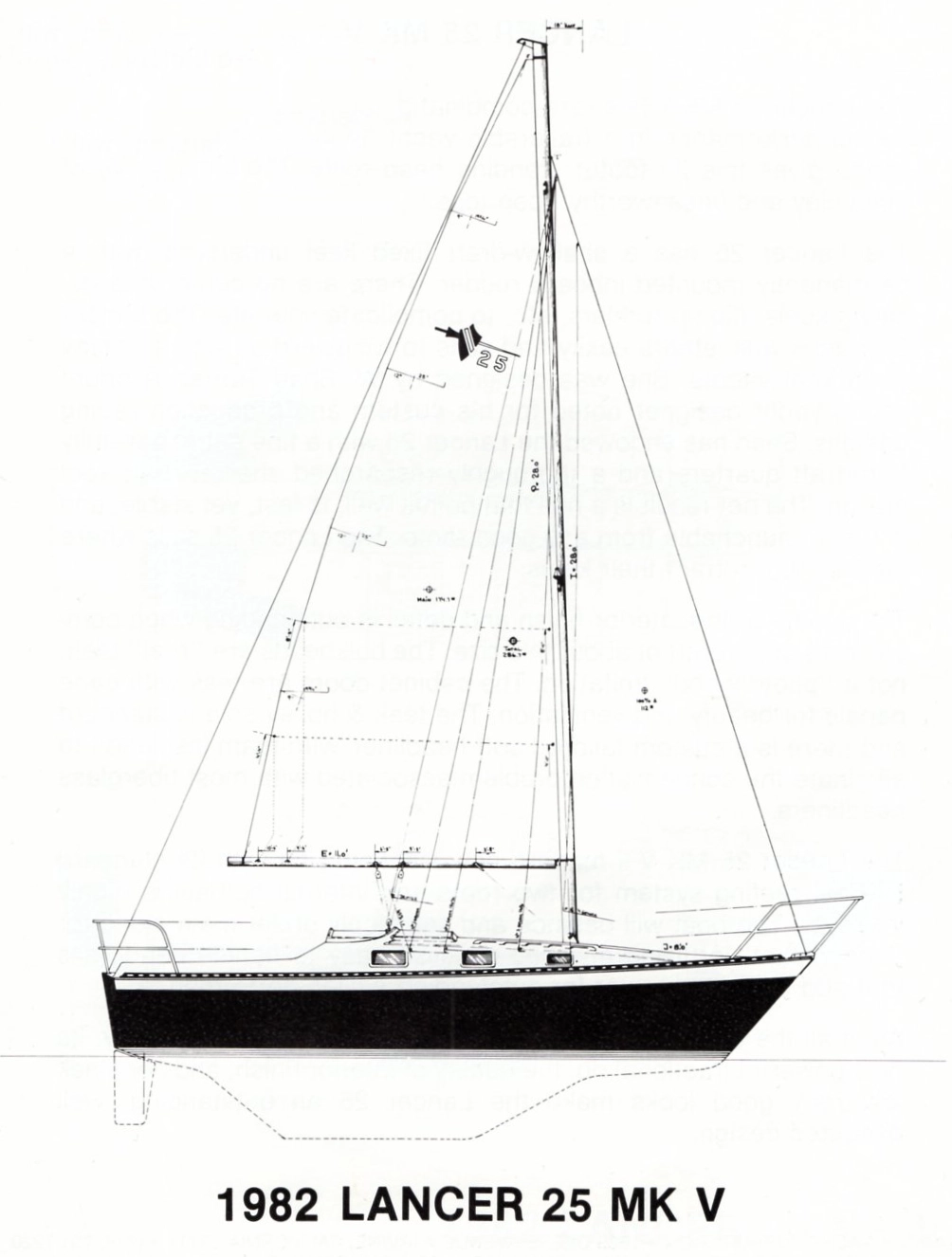

LANCER 25 MK V
Description
3600 lbs. Disp 1300 lbs. Ballast 20'1" LWL 8' Beam 3' Draft
Construction Details
| Designer | W. Shad Turner |
|---|---|
| Length | 24.670 ft |
| LOA | 24.670 ft |
| LWL | 20.080 ft |
| Beam | 8.000 ft |
| Displacement | 3400 lb |
| Max Draft | 2.330 ft |
The standard boat dimensions
| i | 28 ft |
|---|---|
| j | 8 ft |
| p | 28 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 28 ft | 8 ft | 28 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 27.66 ft - (8431 mm) |
| MidGirth | * 14.4 ft - (4389 mm) |
| Foot | * 14.4 ft - (4389 mm) |
| Perc LP | * 180 |
| Area | * 339 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 27.66 ft - (8431 mm) |
| Foot | * 13.2 ft - (4023 mm) |
| Leech | * 25.45 ft - (7757 mm) |
| Perc LP | * 165 |
| Area | * 274 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 27.66 ft - (8431 mm) |
| Foot | * 13.23 ft - (4033 mm) |
| Leech | * 25.14 ft - (7663 mm) |
| Perc LP | * 150 |
| Length Perp | * 12 |
| Deck Angle | * 8.95 ° |
| Area | * 165.97 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 16.02 ft - (4883 mm) |
| Foot | * 5.86 ft - (1786 mm) |
| Leech | * 13.54 ft - (4127 mm) |
| Perc LP | * 60 |
| Length Perp | * 4.8 |
| Deck Angle | * 19.04 ° |
| Area | * 38.46 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28 ft - (8534 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 29.48 ft - (8986 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.72 ft - (9059 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 159.31 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 27.66 ft - (8431 mm) |
| Foot | * 12.77 ft - (3892 mm) |
| Leech | * 26.2 ft - (7986 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12 ft - (3658 mm) |
| Deck Angle | * 4.06 ° |
| Area | * 165.95 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 23.3 ft - (7102 mm) |
| Foot | * 10.41 ft - (3173 mm) |
| Leech | * 20.6 ft - (6279 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 9.2 ft - (2804 mm) |
| Deck Angle | * 11.94 ° |
| Area | * 107.19 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
