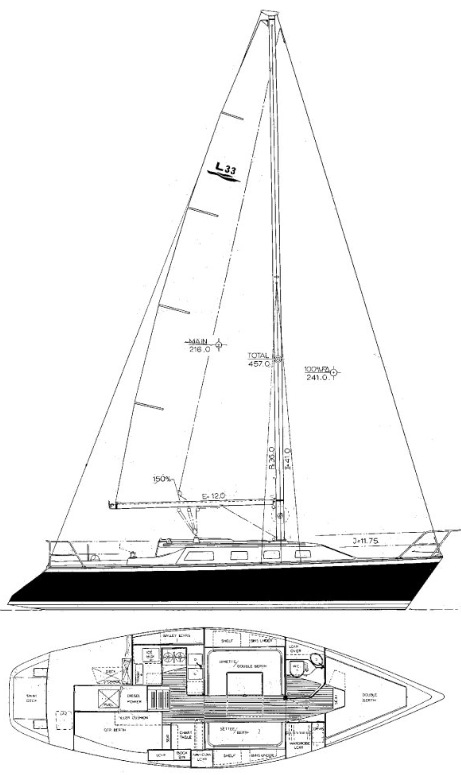

LAGUNA 33
Description
The LAGUNA 33 is a mid-sized cruiser designed by W. Shad Turner. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | W. Shad Turner |
|---|---|
| Length | 33.000 ft |
| LOA | 32.920 ft |
| LWL | 27.500 ft |
| Beam | 10.670 ft |
| Displacement | 9590 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 41 ft |
|---|---|
| j | 11.50 ft |
| p | 36 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 41 ft | 11.50 ft | 36 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 40.45 ft - (12329 mm) |
| Foot | * 18.97 ft - (5782 mm) |
| Leech | * 37.21 ft - (11342 mm) |
| Perc LP | * 165 |
| Area | * 576 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.5 ft - (12040 mm) |
| Foot | 18.25 ft - (5563 mm) |
| Leech | 37.75 ft - (11506 mm) |
| Percentage LP | * 150.09 % |
| Length Perpendicular | * 17.26 ft - (5261 mm) |
| Deck Angle | * 3.28 ° |
| Area | * 340.9 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36 ft - (10973 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 37.31 ft - (11372 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.55 ft - (11445 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 222.72 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.45 ft - (12329 mm) |
| Foot | * 18.32 ft - (5584 mm) |
| Leech | * 38.38 ft - (11698 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 4 ° |
| Area | * 348.91 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.07 ft - (10385 mm) |
| Foot | * 14.93 ft - (4551 mm) |
| Leech | * 30.18 ft - (9199 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 13.22 ft - (4029 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 225.19 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 40.45 ft - (12329 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 |
| Area | * 712 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
