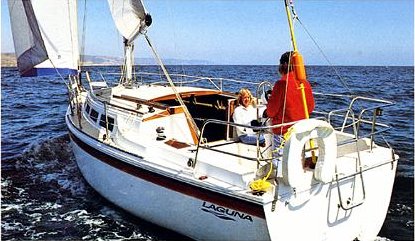

LAGUNA 30
Description
The LAGUNA 30 is a compact cruiser designed by W. Shad Turner. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | W. Shad Turner |
|---|---|
| Length | 30.000 ft |
| LOA | 29.960 ft |
| LWL | 26.000 ft |
| Beam | 10.670 ft |
| Displacement | 8700 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 39 ft |
|---|---|
| j | 11.50 ft |
| p | 34 ft |
| e | 12.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39 ft | 11.50 ft | 34 ft | 12.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 12.25 ft - (3734 mm) |
| Leech-AftHdBd | * 35.5 ft - (10820 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.74 ft - (10894 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 214.64 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.63 ft - (11774 mm) |
| Foot | * 18.41 ft - (5611 mm) |
| Leech | * 36.53 ft - (11134 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 333.2 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.53 ft - (9915 mm) |
| Foot | * 15.04 ft - (4584 mm) |
| Leech | * 28.62 ft - (8723 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 13.23 ft - (4033 mm) |
| Deck Angle | * 11.96 ° |
| Area | * 215.2 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 38.63 ft - (11774 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 |
| Area | * 680 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 36 ft - (10973 mm) |
| Perc LP | * 165 |
| Area | * 570 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
