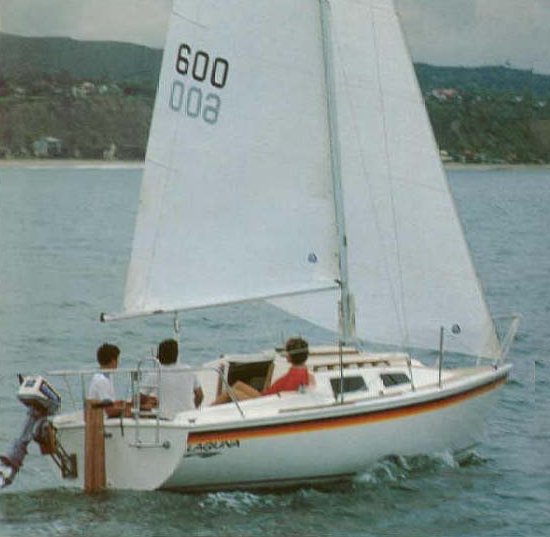

LAGUNA 22
Description
The LAGUNA 22 is a small sailboat designed by W. Shad Turner. With her light displacement hull, she offers spirited performance, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | W. Shad Turner |
|---|---|
| Length | 22.000 ft |
| LOA | 21.580 ft |
| LWL | 19.000 ft |
| Beam | 8.000 ft |
| Displacement | 2280 lb |
| Max Draft | 2.920 ft |
The standard boat dimensions
| i | 24 ft |
|---|---|
| j | 8.75 ft |
| p | 23 ft |
| e | 8.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 24 ft | 8.75 ft | 23 ft | 8.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 24.27 ft - (7397 mm) |
| MidGirth | * 15.75 ft - (4801 mm) |
| Foot | * 15.75 ft - (4801 mm) |
| Perc LP | * 180 |
| Area | * 325 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23 ft - (7010 mm) |
| Foot | * 8.75 ft - (2667 mm) |
| Leech-AftHdBd | * 24.09 ft - (7343 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 24.32 ft - (7413 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 103.48 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.27 ft - (7397 mm) |
| Foot | * 14.36 ft - (4377 mm) |
| Leech | * 22.63 ft - (6898 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 13.12 ft - (3999 mm) |
| Deck Angle | * 3.93 ° |
| Area | * 159.24 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20.44 ft - (6230 mm) |
| Foot | * 11.87 ft - (3618 mm) |
| Leech | * 17.35 ft - (5288 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 10.06 ft - (3066 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 102.8 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 23 ft - (7010 mm) |
| Perc LP | * 165 |
| Area | * 281 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23.25 ft - (7087 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Percentage LP | * 110.86 % |
| Length Perpendicular | * 9.7 ft - (2957 mm) |
| Deck Angle | * 8.12 ° |
| Area | * 112.75 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
