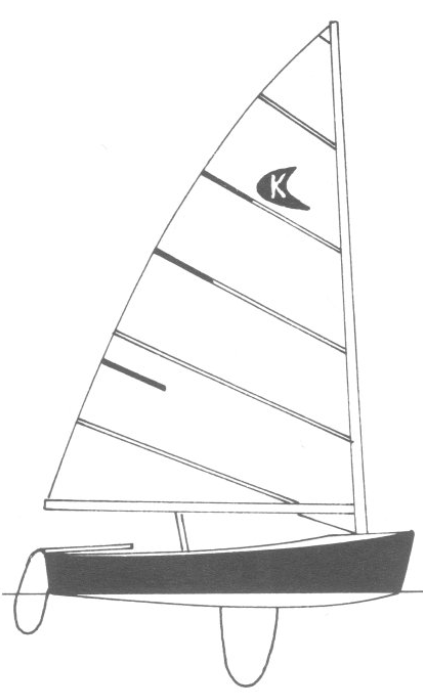

Kite 11

Description

The Kite, a compact 11-foot-6-inch fiberglass sailboat designed by California naval architect Carter Pyle as an ideal one-design racer for youth and novice sailors transitioning from prams like the Naples Sabot, debuted in 1965 under the production auspices of Newport Boats in Newport Beach, California—later rebranded as Lockley Newport Boats—and Mobjack Manufacturing Corp. in Gloucester, Virginia, embodying the era's push for affordable, trailerable dinghies that emphasized simplicity, speed, and class racing over luxury. With a sleek, low-freeboard hull displacing just 195 pounds, a Bermuda sloop rig featuring a 72-square-foot mainsail and optional spinnaker, and a shallow draft of 6 inches under its kick-up centerboard, the Kite excelled in light-air agility and ease of rigging, fostering vibrant fleets primarily along Southern California's coastal bays where it served as a rite-of-passage vessel for generations of young skippers honing tacking, jibing, and windward performance before graduating to larger boats. Though its heyday in the 1960s and 1970s saw enthusiastic class association support for regional regattas and musters, the model's popularity waned by the early 1980s amid the Laser dinghy's explosive rise—offering broader fleets, standardized parts, and international appeal—leading to discontinued production around 1980; today, the Kite endures as a rare collector's gem among vintage enthusiasts, prized for its nimble handling, historical ties to Newport's boating renaissance, and the nostalgic thrill of recapturing unadulterated daysailing joy on a budget, with surviving examples often restored using original spars, Cloos-style wooden rudders, and custom sails from legacy lofts like Ullman.

Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.

Construction Details

Designer Carter Pyle
Builder Lancraft
Length 11.500 ft
Request A Sail Quote

The standard boat dimensions

i -
j -
p -
e -
p2 -
e2 -
i2 -
j2 -

Sails

Sail Type MAINSAIL
Luff 16.42 ft - (5005 mm)
Foot 9.58 ft - (2920 mm)
Leech * 18.52 ft - (5645 mm)
Tack Angle * 88.21 °
Diagonal 18.75 ft - (5715 mm)
Head (inches) * 4.5 in - (114 mm)
Area * 81.37 ft²

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
