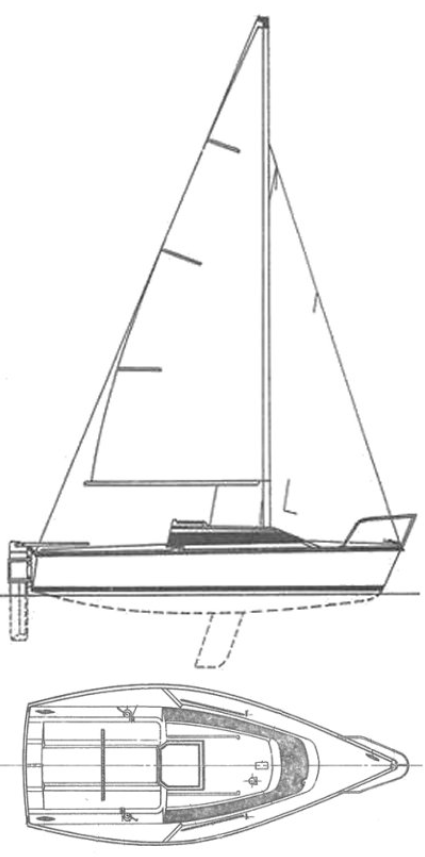

Jouet 5.5
Description
The Jouet 5.5 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 18.000 ft |
The standard boat dimensions
| i | 21.38 ft |
|---|---|
| j | 7.75 ft |
| p | 20.58 ft |
| e | 7.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 21.38 ft | 7.75 ft | 20.58 ft | 7.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 20.58 ft - (6273 mm) |
| Foot | * 7.33 ft - (2234 mm) |
| Leech-AftHdBd | * 21.44 ft - (6535 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 21.6 ft - (6584 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 78 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 18.19 ft - (5544 mm) |
| Foot | * 10.5 ft - (3200 mm) |
| Leech | * 15.46 ft - (4712 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 8.91 ft - (2716 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 81.03 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 21.6 ft - (6584 mm) |
| Foot | * 12.71 ft - (3874 mm) |
| Leech | * 20.14 ft - (6139 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 11.62 ft - (3542 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 125.49 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 21.6 ft - (6584 mm) |
| Foot | * 12.79 ft - (3898 mm) |
| Leech | * 19.87 ft - (6056 mm) |
| Perc LP | * 165 |
| Area | * 207 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 12.51 ft - (3813 mm) |
| Foot | * 5.98 ft - (1823 mm) |
| Leech | * 9.91 ft - (3021 mm) |
| Perc LP | * 60 |
| Length Perp | * 4.65 |
| Deck Angle | * 19.02 ° |
| Area | * 29.09 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
