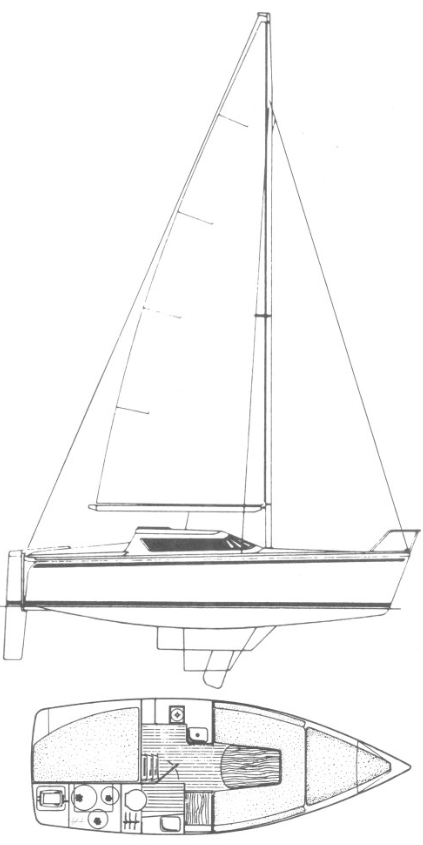

JEANNEAU TONIC 23
Description
The JEANNEAU TONIC 23 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 23.000 ft |
The standard boat dimensions
| i | 25.80 ft |
|---|---|
| j | 7.84 ft |
| p | 27.75 ft |
| e | 10.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.80 ft | 7.84 ft | 27.75 ft | 10.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 |
| Area | * 258 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 21 ft - (6401 mm) |
| Percentage LP | * 104.85 % |
| Length Perpendicular | * 8.22 ft - (2505 mm) |
| Deck Angle | * 7.19 ° |
| Area | * 94.48 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.62 ft - (7809 mm) |
| Foot | * 12.59 ft - (3837 mm) |
| Leech | * 24.18 ft - (7370 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.76 ft - (3584 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 150.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.75 ft - (7544 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 23 ft - (7010 mm) |
| Percentage LP | * 115.56 % |
| Length Perpendicular | * 9.06 ft - (2761 mm) |
| Deck Angle | * 4.82 ° |
| Area | * 112.09 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27.75 ft - (8458 mm) |
| Foot | * 10.5 ft - (3200 mm) |
| Leech-AftHdBd | * 29.12 ft - (8876 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.33 ft - (8940 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 150.14 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.62 ft - (7809 mm) |
| Foot | * 12.59 ft - (3837 mm) |
| Leech | * 24.18 ft - (7370 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.76 ft - (3584 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 150.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.57 ft - (6575 mm) |
| Foot | * 10.31 ft - (3142 mm) |
| Leech | * 18.87 ft - (5752 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 9.02 ft - (2749 mm) |
| Deck Angle | * 12.08 ° |
| Area | * 97.27 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 25.62 ft - (7809 mm) |
| MidGirth | * 14.11 ft - (4301 mm) |
| Foot | * 14.11 ft - (4301 mm) |
| Perc LP | * 180 |
| Area | * 307 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
