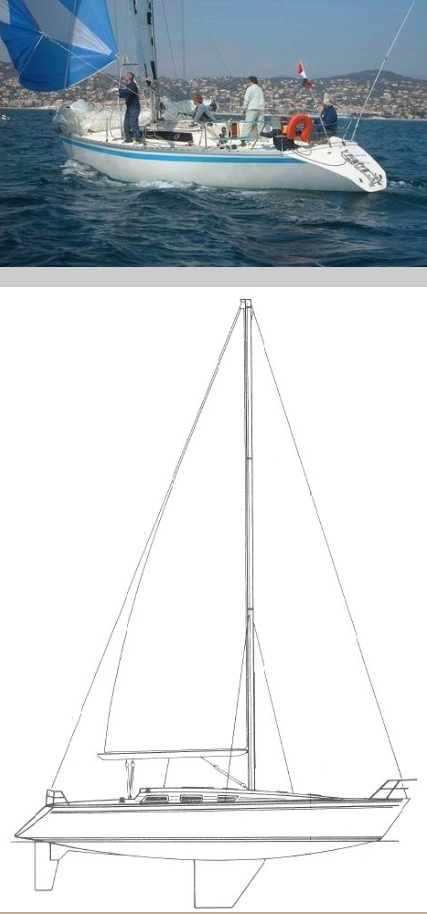

JEANNEAU SUNSHINE 38
Description
The JEANNEAU SUNSHINE 38 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 38.000 ft |
The standard boat dimensions
| i | 46.29 ft |
|---|---|
| j | 14.70 ft |
| p | 40.03 ft |
| e | 13.52 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.29 ft | 14.70 ft | 40.03 ft | 13.52 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 46.14 ft - (14063 mm) |
| Foot | * 24.26 ft - (7394 mm) |
| Leech | * 42.45 ft - (12939 mm) |
| Perc LP | * 165 |
| Area | * 840 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 45.75 ft - (13945 mm) |
| Foot | 20.67 ft - (6300 mm) |
| Leech | 42.75 ft - (13030 mm) |
| Percentage LP | * 130.82 % |
| Length Perpendicular | * 19.23 ft - (5861 mm) |
| Deck Angle | * 3.87 ° |
| Area | * 439.97 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.03 ft - (12201 mm) |
| Foot | * 13.52 ft - (4121 mm) |
| Leech-AftHdBd | * 41.53 ft - (12658 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.8 ft - (12741 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 279.21 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46.14 ft - (14063 mm) |
| Foot | * 23.72 ft - (7230 mm) |
| Leech | * 43.41 ft - (13231 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.05 ft - (6721 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 508.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.85 ft - (11841 mm) |
| Foot | * 19.45 ft - (5928 mm) |
| Leech | * 33.78 ft - (10296 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 16.91 ft - (5154 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 328.5 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
