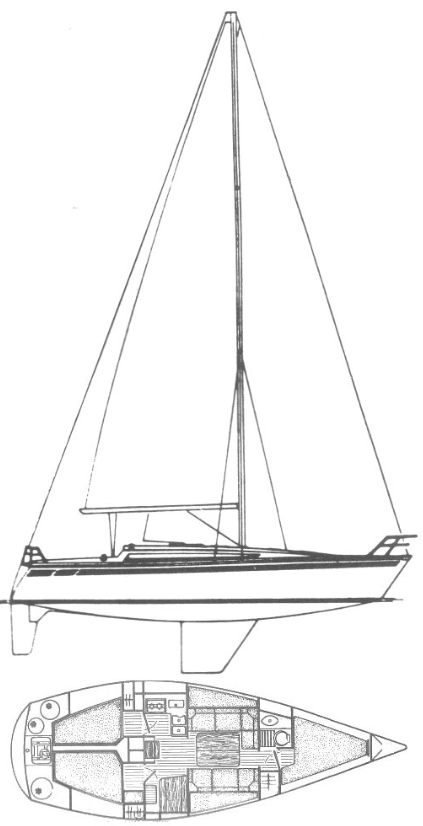

JEANNEAU SUNSHINE 36
Description
The JEANNEAU SUNSHINE 36 is a sailboat designed by Beneteau Yachts. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 46.30 ft |
|---|---|
| j | 14.70 ft |
| p | 40 ft |
| e | 13.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.30 ft | 14.70 ft | 40 ft | 13.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.86 ft - (11845 mm) |
| Foot | * 19.42 ft - (5919 mm) |
| Leech | * 33.78 ft - (10296 mm) |
| Percentage LP | * 114.83 % |
| Length Perpendicular | * 16.88 ft - (5145 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 328 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 45 ft - (13716 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 42.25 ft - (12878 mm) |
| Percentage LP | * 134.76 % |
| Length Perpendicular | * 19.81 ft - (6038 mm) |
| Deck Angle | * 3.58 ° |
| Area | * 445.78 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 25 ft - (7620 mm) |
| Leech | 44 ft - (13411 mm) |
| Perc LP | * 165 |
| Area | * 881 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 46.15 ft - (14067 mm) |
| Foot | * 24.65 ft - (7513 mm) |
| Leech | * 41.46 ft - (12637 mm) |
| Perc LP | * 149.93 |
| Length Perp | * 22.04 |
| Deck Angle | * 8.98 ° |
| Area | * 508.62 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 26.72 ft - (8144 mm) |
| Foot | * 10.97 ft - (3344 mm) |
| Leech | * 22.01 ft - (6709 mm) |
| Perc LP | * 59.86 |
| Length Perp | * 8.8 |
| Deck Angle | * 19.03 ° |
| Area | * 117.6 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40 ft - (12192 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech-AftHdBd | * 41.5 ft - (12649 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.77 ft - (12731 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 278.6 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46.15 ft - (14067 mm) |
| Foot | * 23.71 ft - (7227 mm) |
| Leech | * 43.42 ft - (13234 mm) |
| Percentage LP | * 149.93 % |
| Length Perpendicular | * 22.04 ft - (6718 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 508.58 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 46.15 |
| MidGirth | * 26.46 ft - (8065 mm) |
| Foot | * 26.46 ft - (8065 mm) |
| Perc LP | * 180 |
| Area | * 1038 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
