JEANNEAU 45
Description

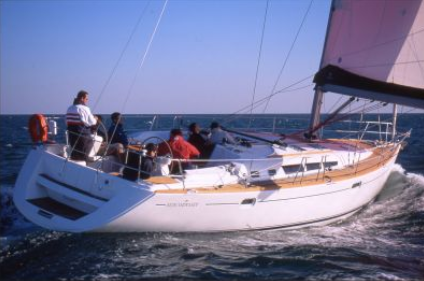

The JEANNEAU 45 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 45.000 ft |
The standard boat dimensions
| i | 53.48 ft |
|---|---|
| j | 17.53 ft |
| p | 47.25 ft |
| e | 14.93 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.48 ft | 17.53 ft | 47.25 ft | 14.93 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.02 ft - (13722 mm) |
| Foot | * 23.31 ft - (7105 mm) |
| Leech | * 38.94 ft - (11869 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.16 ft - (6145 mm) |
| Deck Angle | * 12 ° |
| Area | 453.77 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 47.25 ft - (14402 mm) |
| Foot | * 14.93 ft - (4551 mm) |
| Leech-AftHdBd | * 48.9 ft - (14905 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 49.05 ft - (14950 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 352.36 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 53.47 ft - (16298 mm) |
| Foot | * 28.39 ft - (8653 mm) |
| Leech | * 50.2 ft - (15301 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 26.3 ft - (8016 mm) |
| Deck Angle | * 4 ° |
| Area | 702.96 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 53.47 ft - (16298 mm) |
| MidGirth | * 31.55 ft - (9616 mm) |
| Foot | * 31.55 ft - (9616 mm) |
| Perc LP | * 180 |
| Area | 1433.93 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
