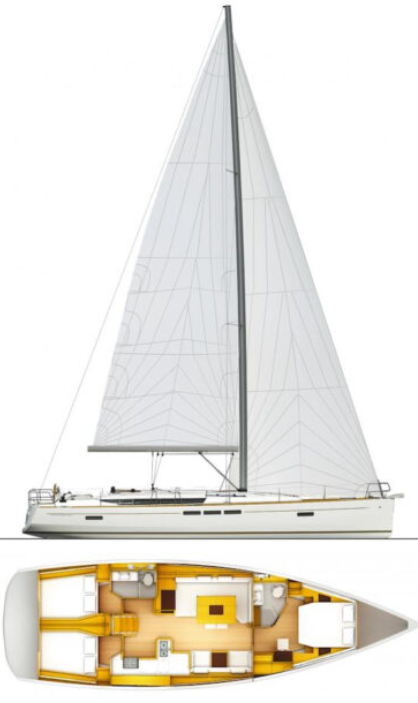

Jeanneau Sun Odyssey 509
Description
The Jeanneau Sun Odyssey 509 is a flagship cruising sailboat designed by Philippe Briand, representing the pinnacle of Jeanneau's performance-oriented Sun Odyssey series. Introduced in 2011 (model year 2012) and produced until 2015, it was built to blend timeless aesthetics, seaworthiness, and luxury for family or charter use. Constructed with a hand-laid solid fiberglass hull and injection-molded balsa-cored deck, it's rigged as a fractional sloop for easy shorthanded sailing. Approximately 200-300 units were produced, many as Sunsail 51 for charters. Variants include deep-draft (standard) and shoal-draft keels, with optional 360° Docking system (joystick-controlled rotating saildrive and thruster).
Construction Details
| Designer | Philippe Briand |
|---|---|
| Builder | Jeanneau |
| Length | 50.460 ft |
| LOA | 24.000 ft |
| LWL | 19.670 ft |
| Beam | 8.580 ft |
| Max Draft | 4.080 ft |
The standard boat dimensions
| i | 62.53 ft |
|---|---|
| j | 18.93 ft |
| p | 57.41 ft |
| e | 19.68 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 62.53 ft | 18.93 ft | 57.41 ft | 19.68 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 57.41 ft - (17499 mm) |
| Foot | * 19.68 ft - (5998 mm) |
| Leech | * 59.76 ft - (18215 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 60.04 ft - (18300 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 576.98 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 52.27 ft - (15932 mm) |
| Foot | * 24.85 ft - (7574 mm) |
| Leech | * 45.79 ft - (13957 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 21.77 ft - (6635 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 568.92 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 62.07 ft - (18919 mm) |
| Foot | * 30.39 ft - (9263 mm) |
| Leech | * 58.6 ft - (17861 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 28.4 ft - (8656 mm) |
| Deck Angle | * 4 ° |
| Area | * 881.44 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 62.07 ft - (18919 mm) |
| Foot | * 31.23 ft - (9519 mm) |
| Leech | * 57.1 ft - (17404 mm) |
| Perc LP | * 165 % |
| Area | * 1454 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 63 ft - (19202 mm) |
| Foot | 31 ft - (9449 mm) |
| Leech | 60 ft - (18288 mm) |
| Perc LP | * 165 % |
| Area | * 1465 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
