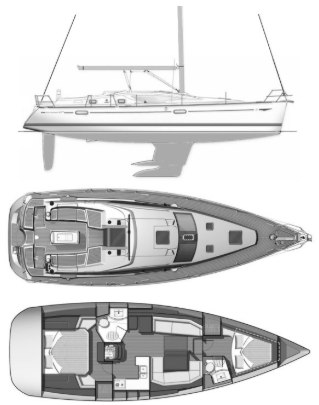

Jeaneau Sun Odyssey 45
Description
The Jeaneau Sun Odyssey 45 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 45.000 ft |
The standard boat dimensions
| i | 55.25 ft |
|---|---|
| j | 14.33 ft |
| p | 51.83 ft |
| e | 17.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 55.25 ft | 14.33 ft | 51.83 ft | 17.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 51.83 ft - (15798 mm) |
| Foot | * 17.33 ft - (5282 mm) |
| Leech-AftHdBd | * 53.8 ft - (16398 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 54.07 ft - (16481 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 460.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 54.22 ft - (16526 mm) |
| Foot | * 22.68 ft - (6913 mm) |
| Leech | * 51.68 ft - (15752 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 21.5 ft - (6553 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 582.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.66 ft - (13917 mm) |
| Foot | * 18.42 ft - (5614 mm) |
| Leech | * 40.9 ft - (12466 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.48 ft - (5023 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 376.25 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 55 ft - (16764 mm) |
| Foot | 24.75 ft - (7544 mm) |
| Leech | 52 ft - (15850 mm) |
| Perc LP | * 165 |
| Area | * 1021 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
