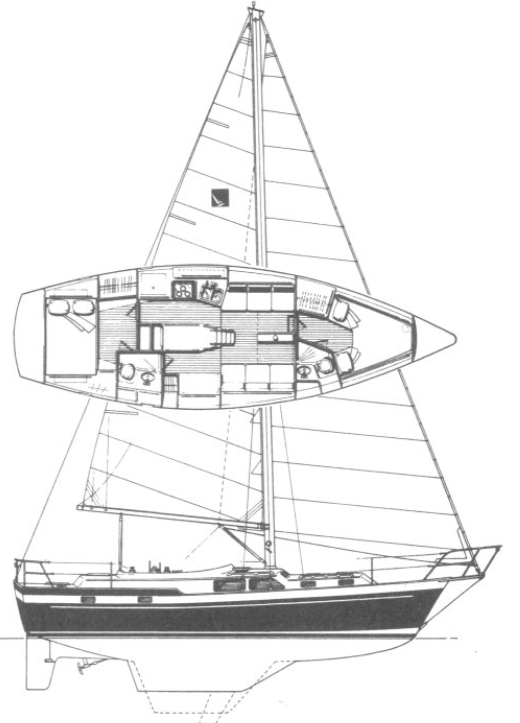

Irwin 38 - 2
Description
The Irwin 38 Mk II is a fiberglass center-cockpit cruising sailboat designed by naval architect Ted Irwin and built by Irwin Yachts from 1984 to 1989. Part of the Irwin 38 series (which began in 1971 with the original Mk I), the Mk II introduced refinements like an updated rig for better upwind performance, improved interior layouts for enhanced ventilation and light, and optional wing or fin keels for versatility. Primarily rigged as a masthead sloop (with cutter options), it balances coastal cruising comfort with modest racing capability, making it suitable for family weekends, liveaboard use, or short offshore passages like Florida to the Bahamas. With a moderate displacement and spacious accommodations, it's praised for livability but critiqued for average speed in light air. Approximately 150-200 Mk II hulls were produced, reflecting Irwin's focus on affordable, roomy cruisers.
Construction Details
| Designer | Ted Irwin |
|---|---|
| Builder | Irwin Yachts |
| Length | 38.000 ft |
| LOA | 33.000 ft |
| LWL | 27.500 ft |
| Beam | 11.170 ft |
| Displacement | 11950 lb |
| Max Draft | 5.500 ft |
The standard boat dimensions
| i | 42 ft |
|---|---|
| j | 14 ft |
| p | 35.50 ft |
| e | 11 ft |
| p2 | 28.25 ft |
| e2 | 9.75 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 42 ft | 14 ft | 35.50 ft | 11 ft | 28.25 ft | 9.75 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.5 ft - (10820 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech | * 36.56 ft - (11143 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 36.8 ft - (11217 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 201.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.42 ft - (10796 mm) |
| Foot | * 18.67 ft - (5691 mm) |
| Leech | * 30.55 ft - (9312 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.1 ft - (4907 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 285.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.06 ft - (12820 mm) |
| Foot | * 22.72 ft - (6925 mm) |
| Leech | * 39.44 ft - (12021 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 441.6 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 23.5 ft - (7163 mm) |
| Leech | 40 ft - (12192 mm) |
| Perc LP | * 165 % |
| Area | * 758 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 24.35 ft - (7422 mm) |
| Foot | * 10.58 ft - (3225 mm) |
| Leech | * 19.79 ft - (6032 mm) |
| Perc LP | * 60 % |
| Length Perp | * 8.4 ft - (2560 mm) |
| Deck Angle | * 19 ° |
| Area | * 102.28 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
