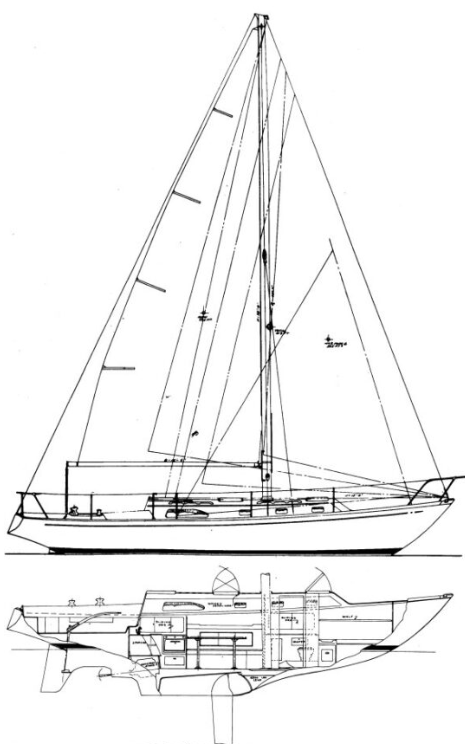

Irwin 38
Description
The Irwin 38 is a fiberglass center-cockpit cruising sailboat designed by naval architect Ted Irwin and built by Irwin Yachts from 1971 to 1989. Primarily offered as a ketch or sloop rig (with cutter options), it was engineered for coastal and moderate offshore cruising, emphasizing spacious interiors, family-friendly livability, and ease of handling over high performance. With a moderate displacement hull and options for fixed fin keel, wing keel, or keel/centerboard, it's versatile for shallow-water access (e.g., Bahamas) while providing stability for East Coast or Caribbean passages. The design evolved through marks (Mk I-V), with later versions like the Mk II (1984+) adding refinements such as a deeper forefoot for better upwind performance. Approximately 200-300 hulls were produced across variants, making it one of Irwin's more popular mid-size cruisers, though its lighter construction prioritizes volume over rugged bluewater capability without upgrades.
Construction Details
| Designer | Ted Irwin |
|---|---|
| Builder | Irwin Yachts |
| Length | 38.000 ft |
| LOA | 28.420 ft |
| LWL | 23.000 ft |
| Beam | 9.000 ft |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 49.75 ft |
|---|---|
| j | 17.25 ft |
| p | 42.75 ft |
| e | 16 ft |
| p2 | 28.25 ft |
| e2 | 9.75 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 49.75 ft | 17.25 ft | 42.75 ft | 16 ft | 28.25 ft | 9.75 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42.75 ft - (13030 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech | * 44.96 ft - (13704 mm) |
| Tack Angle | * 88.04 ° |
| Diagonal | * 45.13 ft - (13756 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 341.65 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.12 ft - (12838 mm) |
| Foot | * 23.17 ft - (7062 mm) |
| Leech | * 36.08 ft - (10997 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.84 ft - (6047 mm) |
| Deck Angle | * 12 ° |
| Area | 417.68 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.02 ft - (15246 mm) |
| Foot | * 28.14 ft - (8577 mm) |
| Leech | * 46.78 ft - (14259 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.88 ft - (7888 mm) |
| Deck Angle | * 4 ° |
| Area | 647.25 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 50.02 ft - (15246 mm) |
| MidGirth | * 31.05 ft - (9464 mm) |
| Foot | * 31.05 ft - (9464 mm) |
| Perc LP | * 180 % |
| Area | 1320.15 ft² |
