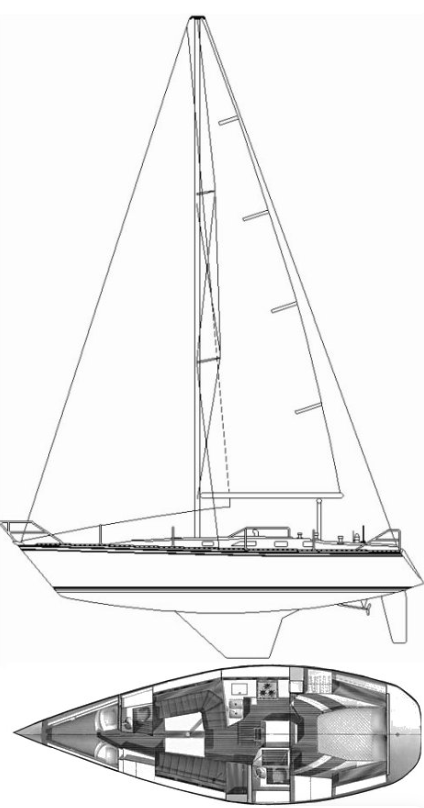

Hunter Legend 40
Description
The Hunter Legend 40 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 40.000 ft |
The standard boat dimensions
| i | 54 ft |
|---|---|
| j | 17 ft |
| p | 48 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 54 ft | 17 ft | 48 ft | 14 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 48 ft - (14630 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 49.26 ft - (15014 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 49.53 ft - (15097 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 346.19 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 52.5 ft - (16002 mm) |
| Foot | 22.33 ft - (6806 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 120.06 % |
| Length Perpendicular | * 20.41 ft - (6221 mm) |
| Deck Angle | * 6.45 ° |
| Area | * 535.79 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52.5 ft - (16002 mm) |
| Foot | 24 ft - (7315 mm) |
| Leech | 48.75 ft - (14859 mm) |
| Percentage LP | * 130.65 % |
| Length Perpendicular | * 22.21 ft - (6770 mm) |
| Deck Angle | * 4.81 ° |
| Area | * 582.94 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 54.5 ft - (16612 mm) |
| Foot | 30 ft - (9144 mm) |
| Leech | 50 ft - (15240 mm) |
| Perc LP | * 165 |
| Area | * 1226 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52.5 ft - (16002 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 48.5 ft - (14783 mm) |
| Percentage LP | * 115.47 % |
| Length Perpendicular | * 19.63 ft - (5983 mm) |
| Deck Angle | * 5.07 ° |
| Area | * 515.18 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 52.5 ft - (16002 mm) |
| Foot | 21.25 ft - (6477 mm) |
| Leech | 48.5 ft - (14783 mm) |
| Percentage LP | * 115.47 % |
| Length Perpendicular | * 19.63 ft - (5983 mm) |
| Deck Angle | * 5.07 ° |
| Area | * 515.18 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
