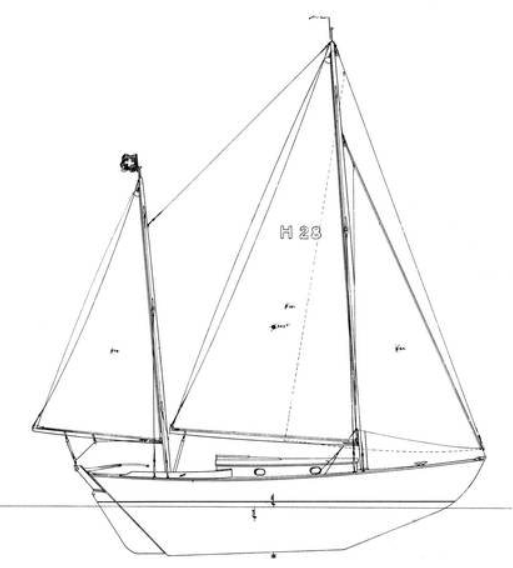

HERRSHOFF 28 KETCH
Description
The HERRSHOFF 28 KETCH is a compact cruiser. With her light displacement hull, she offers spirited performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 28.000 ft |
| LOA | 27.250 ft |
| LWL | 26.000 ft |
| Beam | 9.250 ft |
| Displacement | 3850 lb |
| Max Draft | 3.830 ft |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 8 ft |
| p | 25.50 ft |
| e | 12.50 ft |
| p2 | 16.58 ft |
| e2 | 8.33 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22 ft | 8 ft | 25.50 ft | 12.50 ft | 16.58 ft | 8.33 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech | 24.67 ft - (7519 mm) |
| Percentage LP | * 153 % |
| Length Perpendicular | * 12.24 ft - (3731 mm) |
| Deck Angle | * 2.56 ° |
| Area | * 162.15 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 25.5 ft - (7772 mm) |
| Foot | 12.33 ft - (3758 mm) |
| Leech-AftHdBd | * 27.68 ft - (8437 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.93 ft - (8513 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 162.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20.5 ft - (6248 mm) |
| Foot | 8.58 ft - (2615 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Percentage LP | * 90.75 % |
| Length Perpendicular | * 7.26 ft - (2213 mm) |
| Deck Angle | * 12.25 ° |
| Area | * 74.39 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | 16.58 ft - (5054 mm) |
| Foot | 8.33 ft - (2539 mm) |
| Leech-AftHdBd | * 18.23 ft - (5557 mm) |
| Tack Ang | * 87.97 ° |
| Diag (clew/head) | * 18.29 ft - (5575 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 72 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 22.24 ft - (6779 mm) |
| Foot | * 13.2 ft - (4023 mm) |
| Leech | * 20.46 ft - (6236 mm) |
| Perc LP | * 165 |
| Area | * 220 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
