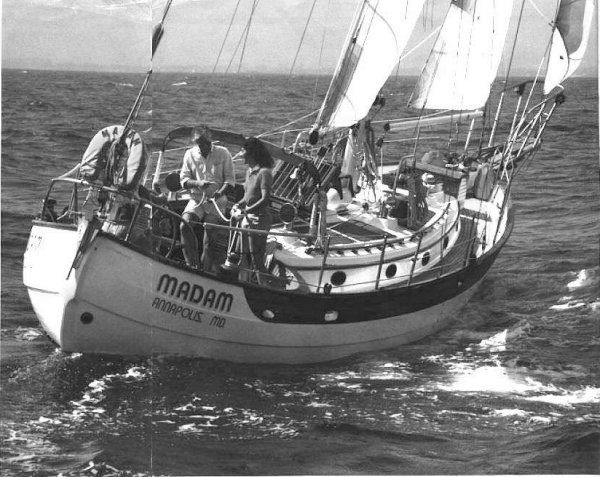

HANS CHRISTIAN 38
Description
The HANS CHRISTIAN 38 is a performance cruiser. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 38.000 ft |
| LOA | 46.000 ft |
| LWL | 33.000 ft |
| Beam | 12.500 ft |
| Displacement | 27500 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 49 ft |
|---|---|
| j | 21.50 ft |
| p | 45 ft |
| e | 16.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49 ft | 21.50 ft | 45 ft | 16.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | YANKEE |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 27.25 ft - (8306 mm) |
| Percentage LP | * 63.81 % |
| Length Perpendicular | * 13.72 ft - (4182 mm) |
| Deck Angle | * 29.68 ° |
| Area | * 288.18 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 50.83 ft - (15493 mm) |
| Foot | * 35.48 ft - (10814 mm) |
| Leech | * 46.76 ft - (14252 mm) |
| Perc LP | * 165 |
| Area | * 1353 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.83 ft - (15493 mm) |
| Foot | * 36.42 ft - (11101 mm) |
| Leech | * 46.8 ft - (14265 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 32.25 ft - (9830 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 819.69 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.81 ft - (13048 mm) |
| Foot | * 30.44 ft - (9278 mm) |
| Leech | * 35.19 ft - (10726 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 24.72 ft - (7535 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 529.11 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45 ft - (13716 mm) |
| Foot | * 16.33 ft - (4977 mm) |
| Leech-AftHdBd | * 47.05 ft - (14341 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 47.33 ft - (14426 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 376.97 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
