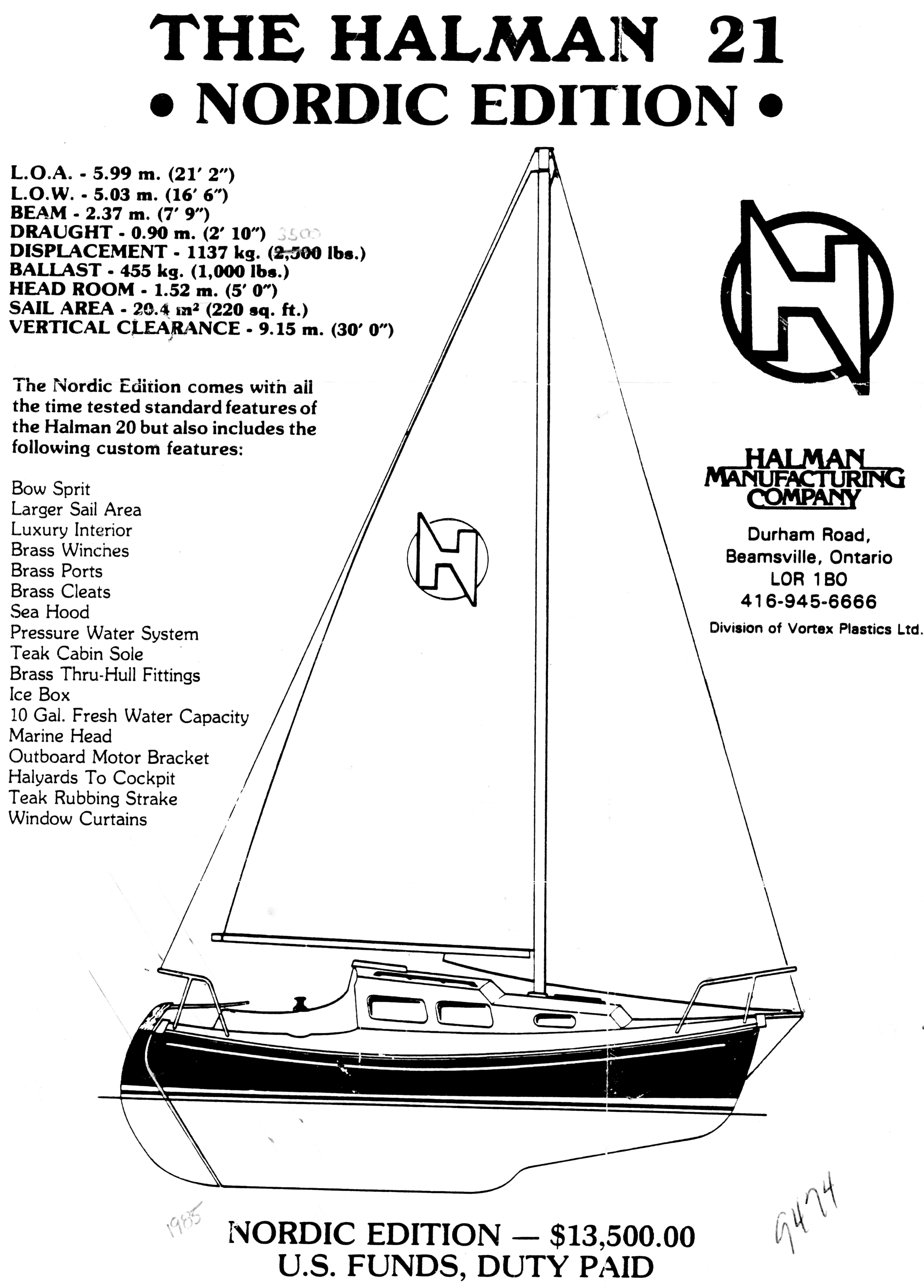

HALMAN 21
Description
The Halman 20 with a bowsprit
Construction Details
| Designer | Unknown |
|---|---|
| Length | 21.000 ft |
The standard boat dimensions
| i | 24.75 ft |
|---|---|
| j | 7.50 ft |
| p | 22.75 ft |
| e | 9.16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 24.75 ft | 7.50 ft | 22.75 ft | 9.16 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 22.75 ft - (6934 mm) |
| Foot | * 9.16 ft - (2792 mm) |
| Leech-AftHdBd | * 24.03 ft - (7324 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 24.23 ft - (7385 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 107.35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 24.57 ft - (7489 mm) |
| Foot | * 12.04 ft - (3670 mm) |
| Leech | * 23.19 ft - (7068 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.25 ft - (3429 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 138.2 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.5 ft - (6858 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 20 ft - (6096 mm) |
| Percentage LP | * 106.4 % |
| Length Perpendicular | * 7.98 ft - (2432 mm) |
| Deck Angle | * 10.68 ° |
| Area | * 89.78 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 20.69 ft - (6306 mm) |
| Foot | * 9.84 ft - (2999 mm) |
| Leech | * 18.13 ft - (5526 mm) |
| Percentage LP | * 114.93 % |
| Length Perpendicular | * 8.62 ft - (2627 mm) |
| Deck Angle | * 11.95 ° |
| Area | * 89.2 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 24.57 ft - (7489 mm) |
| MidGirth | * 13.5 ft - (4115 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Perc LP | * 180 |
| Area | * 282 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 24.57 ft - (7489 mm) |
| Foot | * 12.38 ft - (3773 mm) |
| Leech | * 22.6 ft - (6888 mm) |
| Perc LP | * 165 |
| Area | * 228 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 24.57 ft - (7489 mm) |
| Foot | * 12.5 ft - (3810 mm) |
| Leech | * 22.19 ft - (6764 mm) |
| Perc LP | * 150 |
| Length Perp | * 11.25 |
| Deck Angle | * 8.96 ° |
| Area | * 138.23 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
