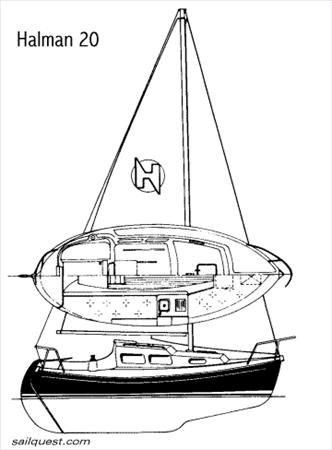

HALMAN 20
Description
L.W.L.: 16' 6" (5.03 m) Beam: 7' 9" (2.37 m) Draft: 2' 10" (.90 m) Displacement: 2500 lbs. (1137 kg.) Ballast: 1000 lbs. (455 kg.) Also found the following on the web: I - 26.5 ft J - 6.7 ft P - 22.0 ft E - 8.17 ft.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 19.670 ft |
The standard boat dimensions
| i | 26.50 ft |
|---|---|
| j | 6.70 ft |
| p | 22.10 ft |
| e | 8.17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.50 ft | 6.70 ft | 22.10 ft | 8.17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 22.1 ft - (6736 mm) |
| Foot | * 8.17 ft - (2490 mm) |
| Leech-AftHdBd | * 23.13 ft - (7050 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 23.29 ft - (7099 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 93.05 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.97 ft - (7916 mm) |
| Foot | * 10.23 ft - (3118 mm) |
| Leech | * 25.25 ft - (7696 mm) |
| Percentage LP | * 147.16 % |
| Length Perpendicular | * 9.86 ft - (3005 mm) |
| Deck Angle | * 1.26 ° |
| Area | * 128.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.87 ft - (6666 mm) |
| Foot | * 8.29 ft - (2527 mm) |
| Leech | * 20.08 ft - (6120 mm) |
| Percentage LP | * 113.58 % |
| Length Perpendicular | * 7.61 ft - (2320 mm) |
| Deck Angle | * 9.18 ° |
| Area | * 83.22 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 25.97 ft - (7916 mm) |
| MidGirth | * 12.06 ft - (3676 mm) |
| Foot | * 12.06 ft - (3676 mm) |
| Perc LP | * 180 |
| Area | * 266 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 4.92 ft - (1500 mm) |
| Leech | 13 ft - (3962 mm) |
| Perc LP | * 63.54 |
| Length Perp | * 4.13 |
| Deck Angle | * 19.38 ° |
| Area | * 30.98 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 |
| Area | * 219 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 21.75 ft - (6629 mm) |
| Percentage LP | * 126.72 % |
| Length Perpendicular | * 8.49 ft - (2588 mm) |
| Deck Angle | * 5.13 ° |
| Area | * 97.67 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
