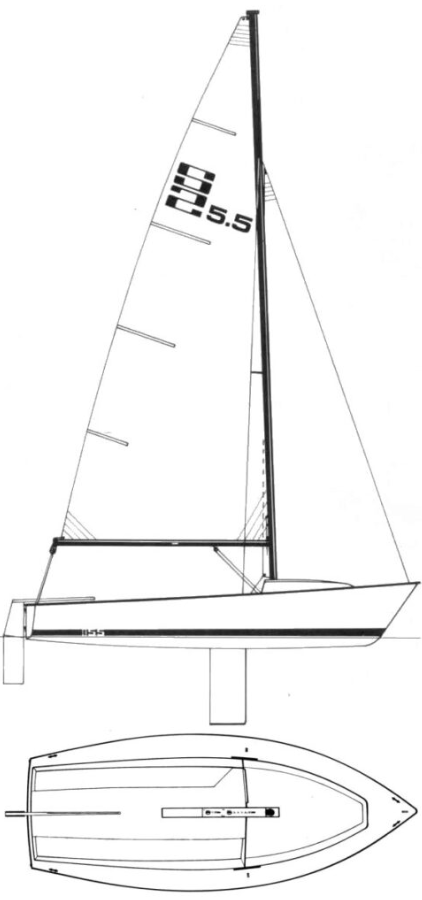

GRAND SLAM 5.5
Description
The GRAND SLAM 5.5 is a sailboat.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 18.000 ft |
The standard boat dimensions
| i | 19.50 ft |
|---|---|
| j | 6 ft |
| p | 23.50 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 19.50 ft | 6 ft | 23.50 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 19.38 ft - (5907 mm) |
| Foot | * 9.9 ft - (3018 mm) |
| Leech | * 17.83 ft - (5435 mm) |
| Perc LP | * 165 |
| Area | * 144 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.5 ft - (7163 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 25.01 ft - (7623 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.22 ft - (7687 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 121.33 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 19.38 ft - (5907 mm) |
| Foot | * 9.65 ft - (2941 mm) |
| Leech | * 18.27 ft - (5569 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 9 ft - (2743 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 87.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 19.25 ft - (5867 mm) |
| Foot | 6.5 ft - (1981 mm) |
| Leech | 18.5 ft - (5639 mm) |
| Length Perpendicular | * 6.24 ft - (1902 mm) |
| Area | * 60.02 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 19.38 ft - (5907 mm) |
| MidGirth | * 10.8 ft - (3292 mm) |
| Foot | * 10.8 ft - (3292 mm) |
| Perc LP | * 180 |
| Area | 177.91 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
