Freedom 40
Description

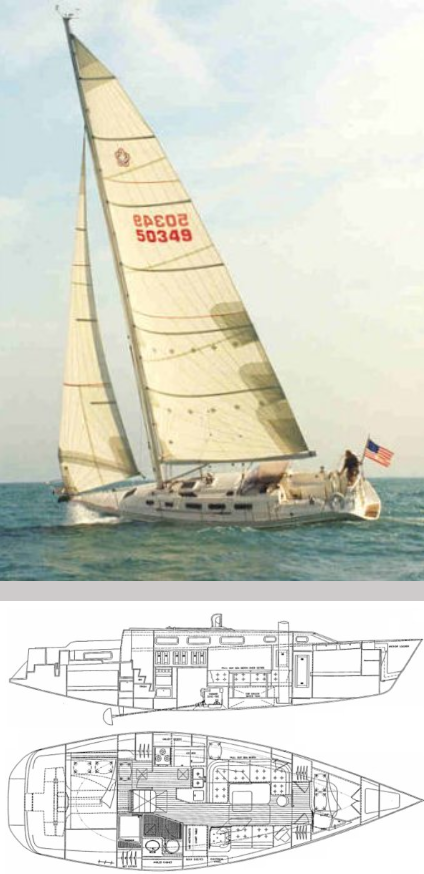

The Freedom 40 is a performance cruiser. This substantial yacht offers spacious accommodations and excellent seakeeping, with a deep keel providing excellent upwind performance and stability. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 40.000 ft |
| LOA | 40.000 ft |
| LWL | 35.000 ft |
| Beam | 12.000 ft |
| Displacement | 20000 lb |
| Max Draft | 10.000 ft |
| Min Draft | 4.250 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 42 ft |
| e | 15 ft |
| p2 | 39 ft |
| e2 | 15 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 42 ft | 15 ft | 39 ft | 15 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42 ft - (12802 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech-AftHdBd | * 43.82 ft - (13356 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 44.1 ft - (13442 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 323.91 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 39 ft - (11887 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech-AftHdBd | * 40.95 ft - (12482 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.29 ft - (12585 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 299.86 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech-AftHdBd | * 40.77 ft - (12427 mm) |
| Tack Ang | 87 ° |
| Diag (clew/head) | * 41.05 ft - (12512 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 300.57 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
