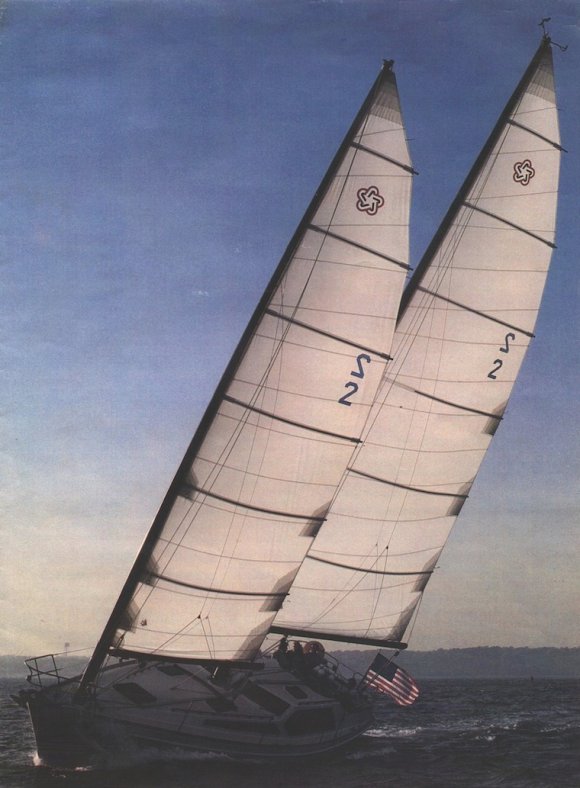

FREEDOM 39 PILOT
Description
The FREEDOM 39 PILOT is a cruising yacht. Built for serious cruising, she offers reassuring stability in all conditions, featuring variable draft for versatility in different sailing conditions. Designed for serious cruising, whether coastal hopping or ocean crossings.
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 39.000 ft |
| LOA | 39.000 ft |
| LWL | 31.000 ft |
| Beam | 12.830 ft |
| Displacement | 18500 lb |
| Max Draft | 5.500 ft |
| Min Draft | 5.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 45.12 ft - (13753 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech-AftHdBd | * 47.54 ft - (14490 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 47.82 ft - (14576 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 404.44 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 39.04 ft - (11899 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech-AftHdBd | * 40.2 ft - (12253 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.44 ft - (12326 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 241.47 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
