FORTUNE 33
Description
The FORTUNE 33 is a mid-sized cruiser. Built for serious cruising, she offers reassuring stability in all conditions. A capable coastal cruiser with the ability to handle longer passages comfortably.
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 33.000 ft |
| LOA | 30.000 ft |
| LWL | 22.670 ft |
| Beam | 10.500 ft |
| Displacement | 10300 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |

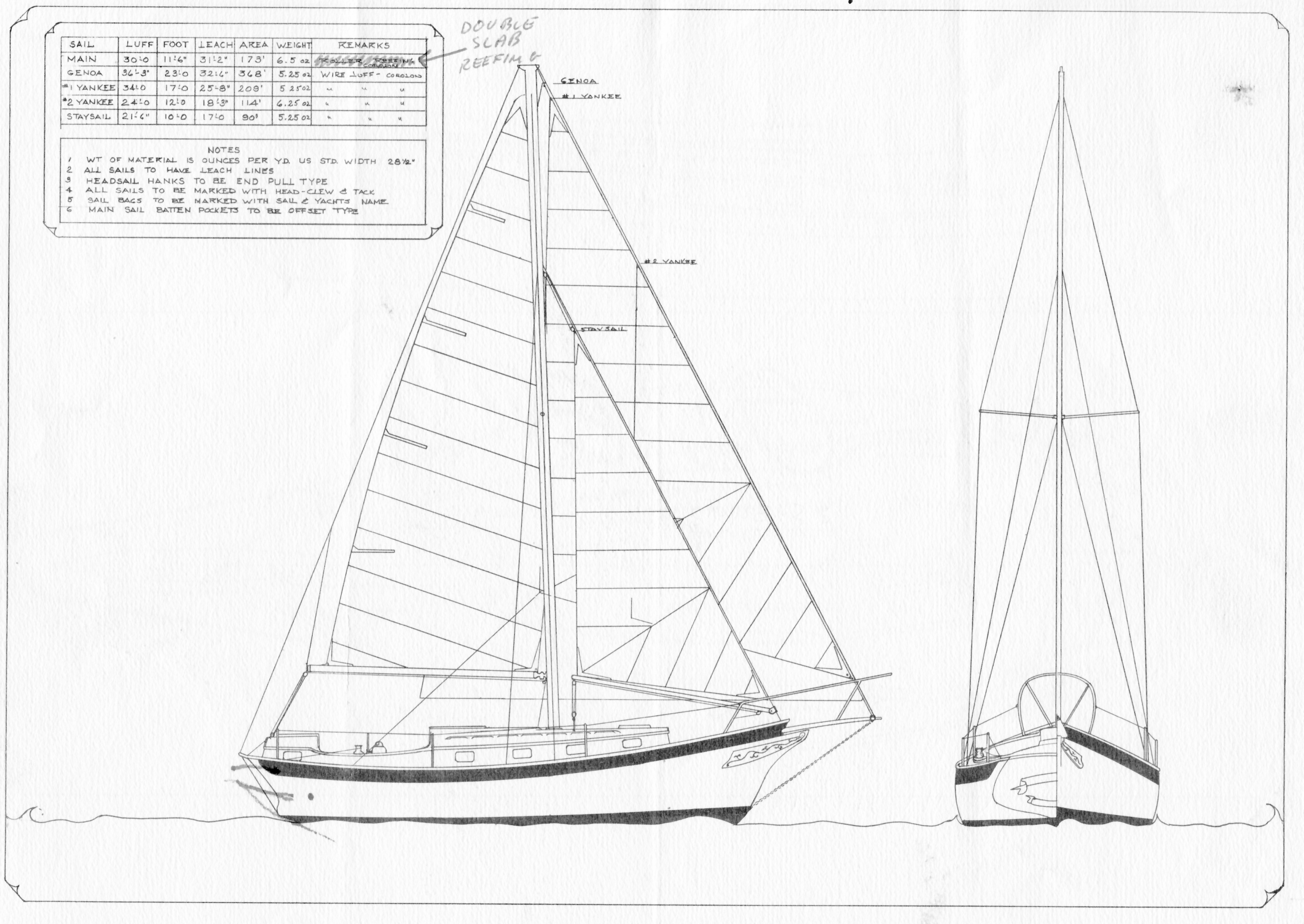

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 36.25 ft - (11049 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 32.5 ft - (9906 mm) |
| Length Perpendicular | 20.28 ft - (6181 mm) |
| Area | 367.55 ft² |
| Sail Type | YANKEE |
|---|---|
| Luff | 34 ft - (10363 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 25.67 ft - (7824 mm) |
| Length Perpendicular | 12.47 ft - (3801 mm) |
| Area | 211.91 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 31.59 ft - (9629 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 31.75 ft - (9677 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 172.29 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 21.5 ft - (6553 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 17 ft - (5182 mm) |
| Length Perpendicular | 7.72 ft - (2353 mm) |
| Area | 83 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
