Farrallon 29
Description
The Farrallon 29 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 29.000 ft |

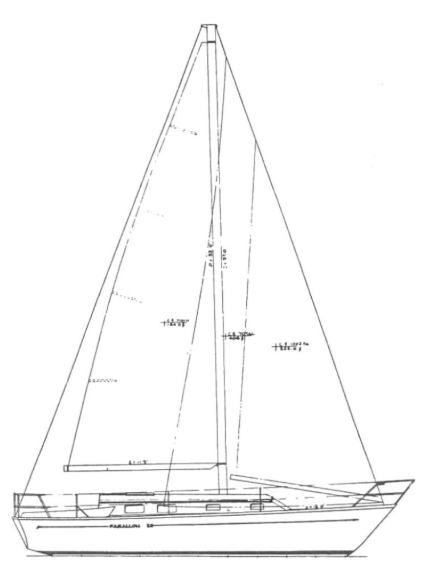

The standard boat dimensions
| i | 37 ft |
|---|---|
| j | 12 ft |
| p | 32 ft |
| e | 11.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37 ft | 12 ft | 32 ft | 11.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32 ft - (9754 mm) |
| Foot | * 11.25 ft - (3429 mm) |
| Leech-AftHdBd | * 33.31 ft - (10153 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33.55 ft - (10226 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 186 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 36.95 ft - (11262 mm) |
| Foot | * 19.41 ft - (5916 mm) |
| Leech | * 34.72 ft - (10583 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 4 ° |
| Area | * 332.56 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.12 ft - (9485 mm) |
| Foot | * 15.93 ft - (4855 mm) |
| Leech | * 26.96 ft - (8217 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 214.71 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 36.95 ft - (11262 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Leech | * 33.99 ft - (10360 mm) |
| Perc LP | * 165 |
| Area | * 549 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 21.39 ft - (6520 mm) |
| Foot | * 9.01 ft - (2746 mm) |
| Leech | * 17.52 ft - (5340 mm) |
| Perc LP | * 60 |
| Length Perp | * 7.2 |
| Deck Angle | * 18.99 ° |
| Area | * 77 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
