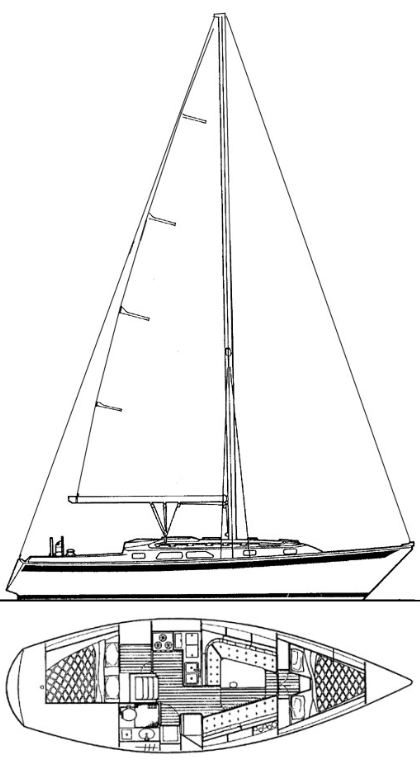

ERICSON 34-II
Description
The ERICSON 34-II is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.000 ft |
The standard boat dimensions
| i | 46 ft |
|---|---|
| j | 15 ft |
| p | 39 ft |
| e | 12.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46 ft | 15 ft | 39 ft | 12.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39 ft - (11887 mm) |
| Foot | * 12.83 ft - (3911 mm) |
| Leech-AftHdBd | * 40.36 ft - (12302 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.63 ft - (12384 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 258.55 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.96 ft - (14009 mm) |
| Foot | * 24.28 ft - (7401 mm) |
| Leech | * 43.16 ft - (13155 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.5 ft - (6858 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 517.02 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 44.5 ft - (13564 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 41.25 ft - (12573 mm) |
| Percentage LP | * 120.27 % |
| Length Perpendicular | * 18.04 ft - (5499 mm) |
| Deck Angle | * 4.25 ° |
| Area | * 401.39 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 49 ft - (14935 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 44.75 ft - (13640 mm) |
| Perc LP | * 165 |
| Area | * 992 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 45.96 ft - (14009 mm) |
| Foot | * 24.75 ft - (7544 mm) |
| Leech | * 42.28 ft - (12887 mm) |
| Perc LP | * 165 |
| Area | * 853 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.71 ft - (11799 mm) |
| Foot | * 19.93 ft - (6075 mm) |
| Leech | * 33.51 ft - (10214 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 333.88 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 45.96 ft - (14009 mm) |
| MidGirth | * 27 ft - (8230 mm) |
| Foot | * 27 ft - (8230 mm) |
| Perc LP | * 180 |
| Area | * 1055 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
