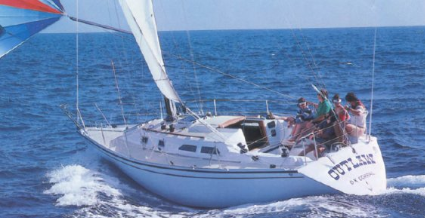

ERICSON 33 7/8 RIG, HOLLAND
Description
The ERICSON 33 7/8 RIG, HOLLAND is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 33.000 ft |
The standard boat dimensions
| i | 39.75 ft |
|---|---|
| j | 12.75 ft |
| p | 43.25 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.75 ft | 12.75 ft | 43.25 ft | 14 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.25 ft - (13183 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 44.72 ft - (13631 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 44.99 ft - (13713 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 312 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.66 ft - (12088 mm) |
| Foot | * 20.6 ft - (6279 mm) |
| Leech | * 37.3 ft - (11369 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 19.13 ft - (5831 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 379.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.4 ft - (10180 mm) |
| Foot | * 16.89 ft - (5148 mm) |
| Leech | * 28.99 ft - (8836 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 14.66 ft - (4468 mm) |
| Deck Angle | * 12 ° |
| Area | * 244.81 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 39.66 ft - (12088 mm) |
| MidGirth | * 22.95 ft - (6995 mm) |
| Foot | * 22.95 ft - (6995 mm) |
| Perc LP | * 180 |
| Area | * 774 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
