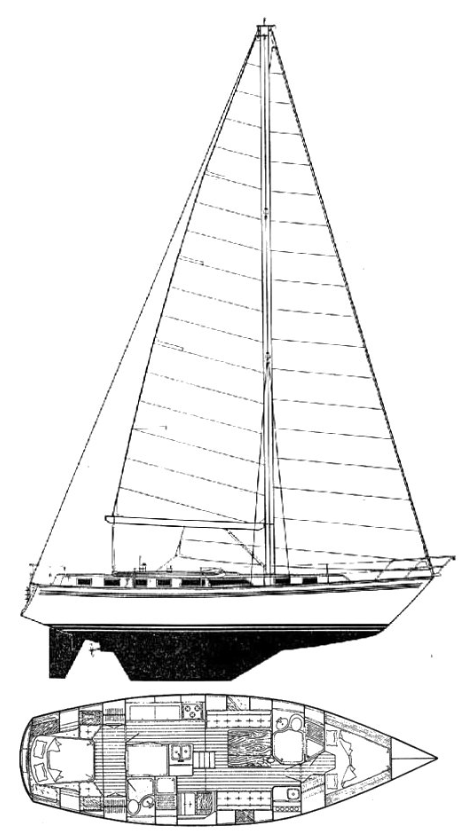

ENDEAVOUR 42 AFT COCKPIT
Description
The ENDEAVOUR 42 AFT COCKPIT is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 42.000 ft |
The standard boat dimensions
| i | 51.75 ft |
|---|---|
| j | 20.17 ft |
| p | 44 ft |
| e | 18 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 51.75 ft | 20.17 ft | 44 ft | 18 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 44.43 ft - (13542 mm) |
| Foot | * 27.75 ft - (8458 mm) |
| Leech | * 37.29 ft - (11366 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 23.2 ft - (7071 mm) |
| Deck Angle | * 12 ° |
| Area | 515.29 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 52.76 ft - (16081 mm) |
| MidGirth | * 36.31 ft - (11067 mm) |
| Foot | * 36.31 ft - (11067 mm) |
| Perc LP | * 180 |
| Area | 1628.36 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44 ft - (13411 mm) |
| Foot | * 18 ft - (5486 mm) |
| Leech-AftHdBd | * 46.77 ft - (14255 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 46.96 ft - (14313 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 395.58 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 52.76 ft - (16081 mm) |
| Foot | * 33.46 ft - (10199 mm) |
| Leech | * 48.94 ft - (14917 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 30.26 ft - (9223 mm) |
| Deck Angle | * 4 ° |
| Area | 798.11 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
