Endeavour 37 Tall rig
Description
The Endeavour 37 Tall rig is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 37.000 ft |

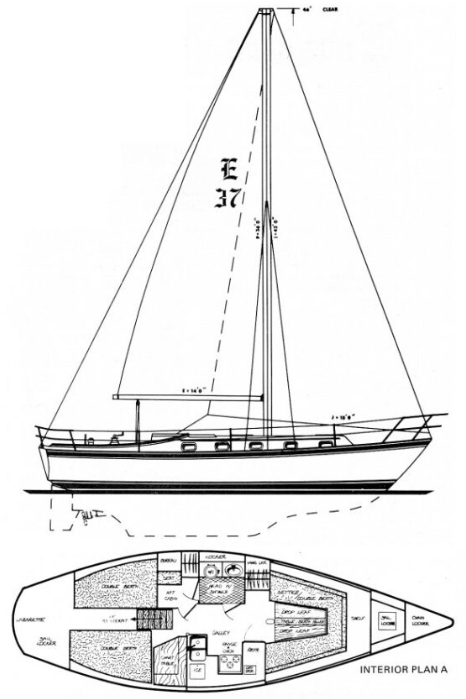

The standard boat dimensions
| i | 46 ft |
|---|---|
| j | 18 ft |
| p | 39 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46 ft | 18 ft | 39 ft | 16 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39 ft - (11887 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech-AftHdBd | * 41.35 ft - (12603 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.63 ft - (12689 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 320.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46.93 ft - (14304 mm) |
| Foot | * 29.88 ft - (9107 mm) |
| Leech | * 43.52 ft - (13265 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 27 ft - (8230 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 633.56 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 45.5 ft - (13868 mm) |
| Foot | 25.75 ft - (7849 mm) |
| Leech | 42 ft - (12802 mm) |
| Percentage LP | * 130.22 % |
| Length Perpendicular | * 23.44 ft - (7145 mm) |
| Deck Angle | * 3.06 ° |
| Area | * 533.34 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 39.52 ft - (12046 mm) |
| Foot | * 24.79 ft - (7556 mm) |
| Leech | * 33.14 ft - (10101 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.7 ft - (6309 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 409.03 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 46.93 ft - (14304 mm) |
| Foot | * 29.7 ft - (9053 mm) |
| Leech | * 43.18 ft - (13161 mm) |
| Perc LP | * 165 |
| Area | * 1045 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 27.17 ft - (8281 mm) |
| Foot | * 14.18 ft - (4322 mm) |
| Leech | * 20.98 ft - (6395 mm) |
| Perc LP | * 60 |
| Length Perp | * 10.8 |
| Deck Angle | * 19 ° |
| Area | * 146.76 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 46.93 ft - (14304 mm) |
| Foot | * 31.29 ft - (9537 mm) |
| Leech | * 41.2 ft - (12558 mm) |
| Perc LP | * 150 |
| Length Perp | * 27 |
| Deck Angle | * 8.98 ° |
| Area | * 633.58 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
