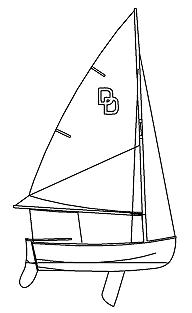

DYER DHOW 9'
Description
Produced from 1949 to the present
Construction Details
| Designer | Philip Rhodes |
|---|---|
| Length | 9.000 ft |
| LOA | 9.000 ft |
| Beam | 4.500 ft |
| Displacement | 106 lb |
| Max Draft | 1.750 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 12.50 ft |
| e | 7.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 12.50 ft | 7.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Stays | 10.5 |
| MidGirth | 5.5 ft - (1676 mm) |
| Foot | 5.5 ft - (1676 mm) |
| Area | * 49 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 12.5 ft - (3810 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech-AftHdBd | * 13.15 ft - (4008 mm) |
| Tack Ang | * 79.43 ° |
| Diag (clew/head) | 13.25 ft - (4039 mm) |
| Head (inches) | 2 in |
| Area (no Roach) | * 45.42 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
