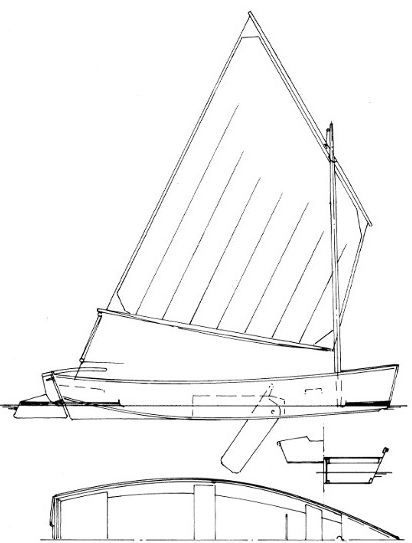

Drake 13
Description
The Drake 13 is a current Selway Fisher Design, created by Paul Fisher as part of his “Drake” family of small sharpie skiffs. It’s essentially the larger sister to the Drake 11 (Sharpie Skiff 11) — same elegant lines and flat-bottom sharpie hull, but stretched to give more length, buoyancy, and carrying capacity. It was designed for those who want a simple, fast, and easily built rowing or sailing skiff that can still be car-topped or easily trailered.
Construction Details
| Designer | Selway Fisher Design |
|---|---|
| Builder | Home Built |
| Length | 13.000 ft |
| LOA | 13.000 ft |
| Beam | 4.500 ft |
| Displacement | 110 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.330 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
Drake 13 - MAINSAIL
| Luff | 13.75 ft - (4191 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | * 15.4 ft - (4694 mm) |
| Tack Angle | * 87.31 ° |
| Diagonal | 15.58 ft - (4749 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 56.72 ft² |
| Edit in Calculator | |
Drake 13 - JIBSAIL
| Luff | 12 ft - (3658 mm) |
|---|---|
| Foot | 5.5 ft - (1676 mm) |
| Leech | 12 ft - (3658 mm) |
| Length Perpendicular | * 5.35 ft - (1631 mm) |
| Area | * 32.12 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
