Ns 14 Class
Description
NS14 Class: A high-performance, 14-foot sailing dinghy designed for youth and club racing. Developed in Australia in 1976 by a group led by Lindsay Cunningham, it's a strict one-design with over 3,000 hulls built worldwide. Known for its asymmetric spinnaker and trapeze, it's unsinkable and trailerable—perfect for learning or competitive fleets.
The standard boat dimensions
| i | 21.33 ft |
|---|---|
| j | 6.67 ft |
| p | 22.67 ft |
| e | 9.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 21.33 ft | 6.67 ft | 22.67 ft | 9.75 ft | - | - | - | - |

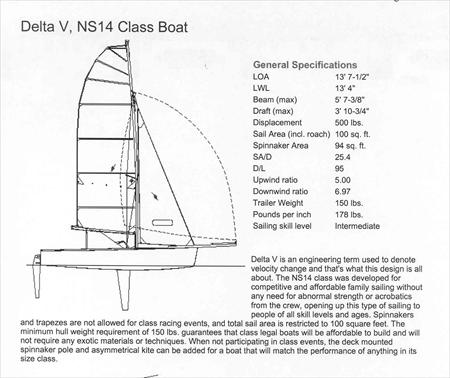

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 16.4 ft - (4999 mm) |
| Foot | 5.16 ft - (1573 mm) |
| Leech | * 16.33 ft - (4977 mm) |
| Tack Angle | * 81.96 ° |
| Diagonal | 16.49 ft - (5026 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 43.9 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12.85 ft - (3917 mm) |
| Foot | 4.79 ft - (1460 mm) |
| Leech | 11.937 ft - (3638 mm) |
| Length Perpendicular | * 4.45 ft - (1356 mm) |
| Area | * 28.59 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 17 ft - (5182 mm) |
| Foot | 9.83 ft - (2996 mm) |
| Leech | 11.54 ft - (3517 mm) |
| Area | * 125 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
