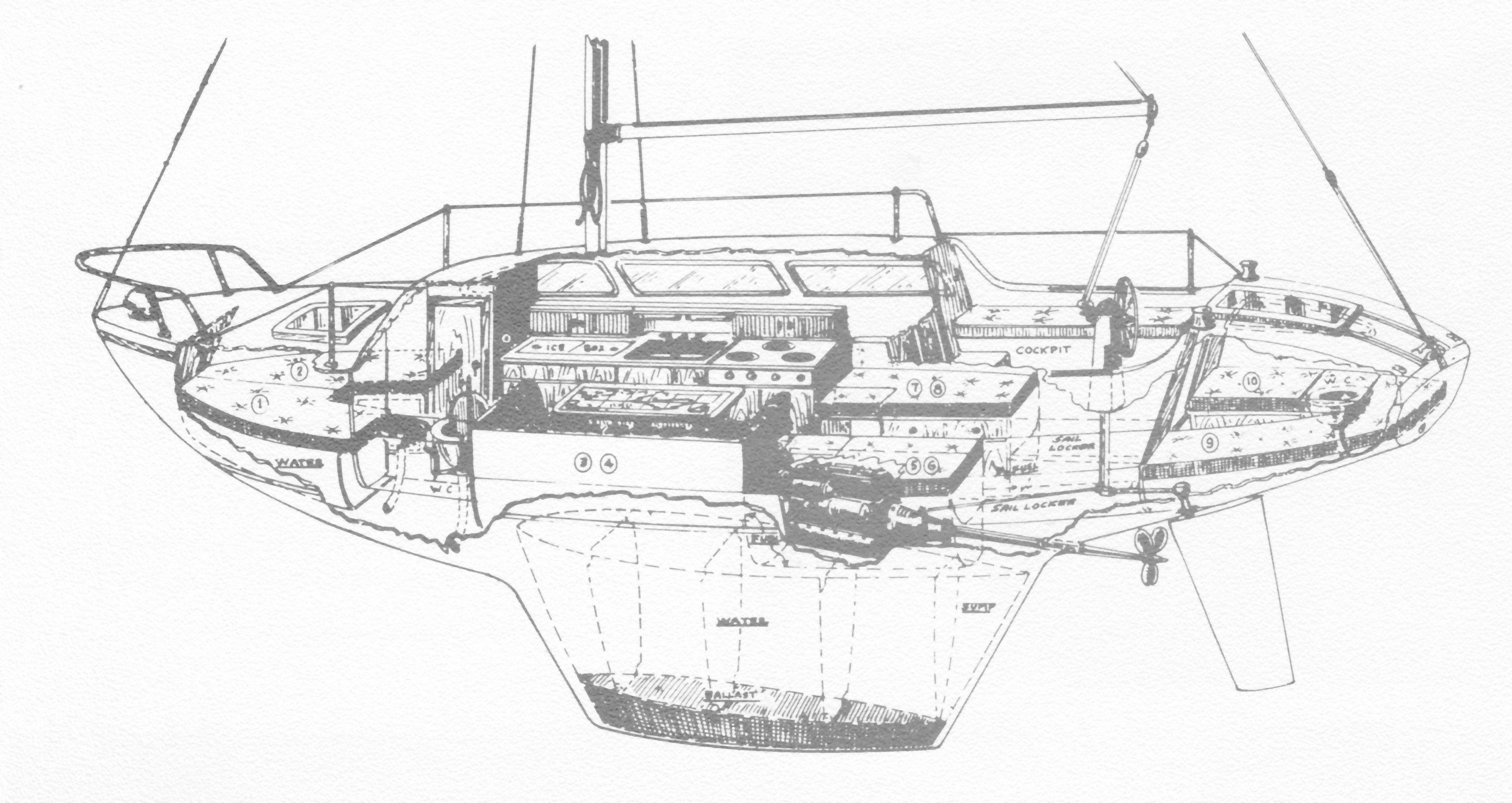

DEL REY 31
Description
The DEL REY 31 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
Designer | Unknown |
---|---|
Length | 31.000 ft |
The standard boat dimensions
i | 37.50 ft |
---|---|
j | 11.50 ft |
p | 32.50 ft |
e | 10.83 ft |
p2 | - |
e2 | - |
I | J | P | E | P2 | E2 |
---|---|---|---|---|---|
37.50 ft | 11.50 ft | 32.50 ft | 10.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
Sail Type | SPINNAKER |
---|---|
Luff | * 37.26 ft - (11357 mm) |
MidGirth | * 20.7 ft - (6309 mm) |
Foot | * 20.7 ft - (6309 mm) |
Perc LP | * 180 |
Area | 655.59 ft² |
Sail Type | MAINSAIL |
---|---|
Luff | * 32.5 ft - (9906 mm) |
Foot | * 10.83 ft - (3301 mm) |
Leech-AftHdBd | * 33.78 ft - (10296 mm) |
Tack Ang | * 88.02 ° |
Diag (clew/head) | * 33.9 ft - (10333 mm) |
Head (inches) | * 4.5 in |
Area (no Roach) | 175.8 ft² |
Sail Type | GENOA |
---|---|
Luff | * 37.26 ft - (11357 mm) |
Foot | * 18.48 ft - (5633 mm) |
Leech | * 35.15 ft - (10714 mm) |
Percentage LP | * 150 % |
Length Perpendicular | * 17.25 ft - (5258 mm) |
Deck Angle | * 4 ° |
Area | 321.34 ft² |
Sail Type | JIBSAIL |
---|---|
Luff | * 31.38 ft - (9565 mm) |
Foot | * 15.13 ft - (4612 mm) |
Leech | * 27.43 ft - (8361 mm) |
Percentage LP | * 115 % |
Length Perpendicular | * 13.23 ft - (4033 mm) |
Deck Angle | * 12 ° |
Area | 207.51 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
