DEL REY 24
Description

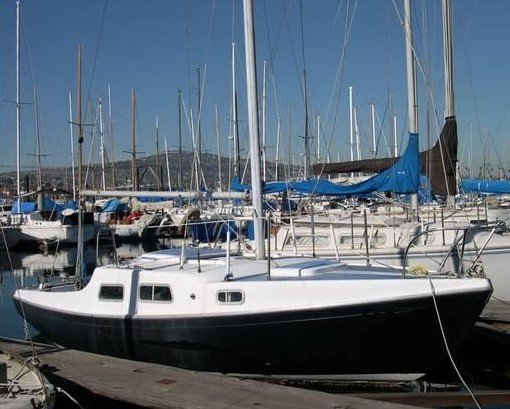

The DEL REY 24 is a small sailboat. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
Designer | Unknown |
---|---|
Length | 24.000 ft |
LOA | 24.000 ft |
LWL | 19.000 ft |
Beam | 8.000 ft |
Displacement | 4300 lb |
Max Draft | 3.700 ft |
The standard boat dimensions
i | 27 ft |
---|---|
j | 9 ft |
p | 24.50 ft |
e | 11 ft |
p2 | - |
e2 | - |
I | J | P | E | P2 | E2 |
---|---|---|---|---|---|
27 ft | 9 ft | 24.50 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
Sail Type | SPINNAKER |
---|---|
Luff | * 27.04 ft - (8242 mm) |
MidGirth | * 16.2 ft - (4938 mm) |
Foot | * 16.2 ft - (4938 mm) |
Perc LP | * 180 |
Area | 372.34 ft² |
Sail Type | MAINSAIL |
---|---|
Luff | * 24.5 ft - (7468 mm) |
Foot | * 11 ft - (3353 mm) |
Leech-AftHdBd | * 26.33 ft - (8025 mm) |
Tack Ang | * 88.04 ° |
Diag (clew/head) | * 26.51 ft - (8080 mm) |
Head (inches) | * 5.25 in |
Area (no Roach) | 134.57 ft² |
Sail Type | GENOA |
---|---|
Luff | * 27.04 ft - (8242 mm) |
Foot | * 14.61 ft - (4453 mm) |
Leech | * 25.36 ft - (7730 mm) |
Percentage LP | * 150 % |
Length Perpendicular | * 13.5 ft - (4115 mm) |
Deck Angle | * 4 ° |
Area | 182.58 ft² |
Sail Type | JIBSAIL |
---|---|
Luff | * 22.77 ft - (6940 mm) |
Foot | * 12 ft - (3658 mm) |
Leech | * 19.64 ft - (5986 mm) |
Percentage LP | * 115 % |
Length Perpendicular | * 10.35 ft - (3155 mm) |
Deck Angle | * 12 ° |
Area | 117.81 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
