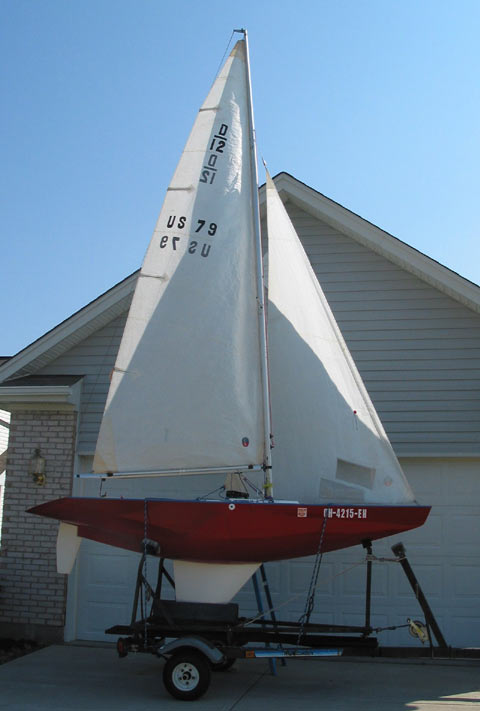

Defender 12
Description
The Defender 12 is a dinghy. This pocket cruiser packs surprising capability into a small package. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 12.000 ft |
| LOA | 12.330 ft |
| LWL | 9.750 ft |
| Beam | 3.080 ft |
| Displacement | 700 lb |
| Max Draft | 2.500 ft |
The standard boat dimensions
| i | 11.52 ft |
|---|---|
| j | 4.30 ft |
| p | 14.37 ft |
| e | 5.44 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 11.52 ft | 4.30 ft | 14.37 ft | 5.44 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 14.37 ft - (4380 mm) |
| Foot | 5.45 ft - (1661 mm) |
| Leech-AftHdBd | * 15.03 ft - (4581 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 15.19 ft - (4630 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 40.97 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 11.48 ft - (3499 mm) |
| Foot | 7.2 ft - (2195 mm) |
| Leech | 10.83 ft - (3301 mm) |
| Percentage LP | * 153.26 % |
| Length Perpendicular | * 6.59 ft - (2009 mm) |
| Deck Angle | * 3.19 ° |
| Area | * 37.85 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 11.48 ft - (3499 mm) |
| Foot | 3.75 ft - (1143 mm) |
| Leech | 10.83 ft - (3301 mm) |
| Percentage LP | * 82.33 % |
| Length Perpendicular | * 3.54 ft - (1079 mm) |
| Deck Angle | * -1.09 ° |
| Area | * 20.31 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 11.68 ft - (3560 mm) |
| MidGirth | * 7.74 ft - (2359 mm) |
| Foot | * 7.74 ft - (2359 mm) |
| Perc LP | * 180 |
| Area | * 77 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
