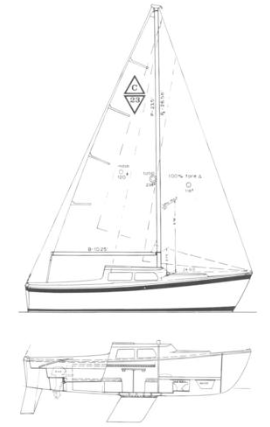

Coronado 23
Description
Introduced in 1970. Production ended in 1972.
Construction Details
| Designer | Alan Payne |
|---|---|
| Length | 22.580 ft |
| LOA | 22.580 ft |
| LWL | 20.080 ft |
| Beam | 7.750 ft |
| Displacement | 2300 lb |
| Max Draft | 3.170 ft |
| Min Draft | 1.920 ft |
The standard boat dimensions
| i | 26.80 ft |
|---|---|
| j | 9.08 ft |
| p | 25.50 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.80 ft | 9.08 ft | 25.50 ft | 10.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25.5 ft - (7772 mm) |
| Foot | * 10.25 ft - (3124 mm) |
| Leech | * 26.94 ft - (8211 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 27.15 ft - (8275 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 134.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 22.64 ft - (6901 mm) |
| Foot | * 12.14 ft - (3700 mm) |
| Leech | * 19.48 ft - (5938 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 10.44 ft - (3182 mm) |
| Deck Angle | * 11.96 ° |
| Area | * 118.19 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 13.75 ft - (4191 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Percentage LP | * 140.64 % |
| Length Perpendicular | * 12.77 ft - (3892 mm) |
| Deck Angle | * 3.02 ° |
| Area | * 166.04 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.88 ft - (8193 mm) |
| Foot | * 14.77 ft - (4502 mm) |
| Leech | * 25.17 ft - (7672 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.62 ft - (4151 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 183.05 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 26.88 ft - (8193 mm) |
| MidGirth | * 16.34 ft - (4980 mm) |
| Foot | * 16.34 ft - (4980 mm) |
| Perc LP | * 180 % |
| Area | * 373 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
