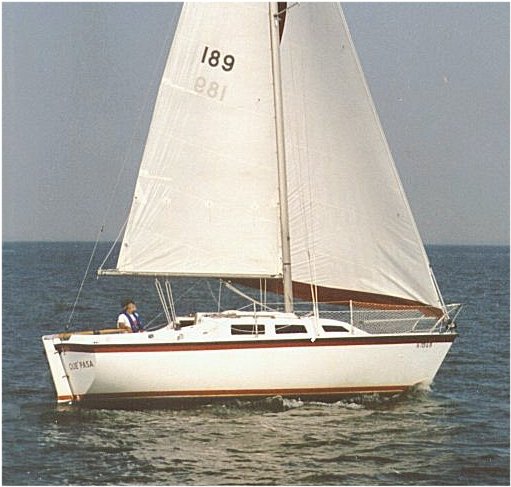

Columbia T-26
Description
Length Waterline: 22' 10" Beam: 7' 11½" Draft: 2' 1" Displacement: 4400 lbs. Ballast: 1400 lbs.
Construction Details
| Designer | Alan Payne |
|---|---|
| Builder | Columbia Yachts |
| Length | 25.830 ft |
| LOA | 25.080 ft |
| LWL | 20.670 ft |
| Beam | 9.170 ft |
| Displacement | 4500 lb |
| Max Draft | 3.500 ft |
The standard boat dimensions
| i | 29.33 ft |
|---|---|
| j | 9.42 ft |
| p | 25.17 ft |
| e | 10.42 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 29.33 ft | 9.42 ft | 25.17 ft | 10.42 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25.17 ft - (7672 mm) |
| Foot | * 10.42 ft - (3176 mm) |
| Leech | * 26.69 ft - (8135 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 26.9 ft - (8199 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 135.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.75 ft - (7849 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 22.42 ft - (6834 mm) |
| Percentage LP | * 110.83 % |
| Length Perpendicular | * 10.44 ft - (3182 mm) |
| Deck Angle | * 11.7 ° |
| Area | * 134.46 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.27 ft - (8921 mm) |
| Foot | * 15.22 ft - (4639 mm) |
| Leech | * 27.52 ft - (8388 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.13 ft - (4307 mm) |
| Deck Angle | * 4 ° |
| Area | * 206.8 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.25 ft - (8611 mm) |
| Foot | 14.25 ft - (4343 mm) |
| Leech | 26.5 ft - (8077 mm) |
| Percentage LP | * 140.45 % |
| Length Perpendicular | * 13.23 ft - (4033 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 186.9 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 28 ft - (8534 mm) |
| Perc LP | * 165 % |
| Area | * 354 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 29.27 ft - (8921 mm) |
| MidGirth | * 16.96 ft - (5169 mm) |
| Foot | * 16.96 ft - (5169 mm) |
| Perc LP | * 180 % |
| Area | * 422 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
