Columbia Carbon 32
Description
The Columbia Carbon 32 is a high-performance, lightweight monohull sailboat designed by Tim Kernan and built by Columbia Yachts (USA) starting in 2011. It is an updated version of the Columbia 32 Sport Yacht, introduced in 2005, and is known for its versatility as a day-sailor, family cruiser, or competitive racer. Its carbon fiber construction and lifting keel make it trailerable and ideal for buoy racing, coastal cruising, or occasional offshore racing.
Construction Details
| Designer | Tim Kernan |
|---|---|
| Builder | Columbia Yachts |
| Length | 32.000 ft |
| LOA | 32.000 ft |
| LWL | 27.000 ft |
| Beam | 10.130 ft |
| Displacement | 4400 lb |
| Ballast | 1776 lb |
| Max Draft | 7.500 ft |
| Min Draft | 2.170 ft |
The standard boat dimensions
| i | 36.94 ft |
|---|---|
| j | 12.57 ft |
| p | 38 ft |
| e | 14.87 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 36.94 ft | 12.57 ft | 38 ft | 14.87 ft | - | - | - | - |
Documents

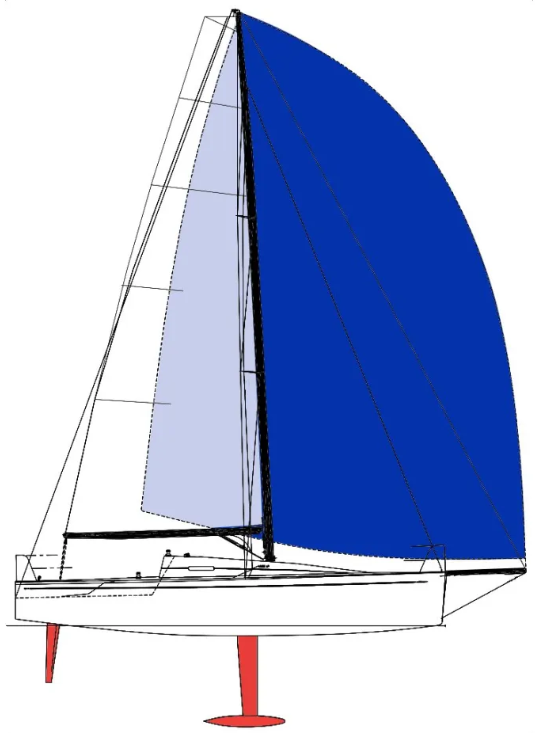

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 14.87 ft - (4532 mm) |
| Leech | * 40.18 ft - (12247 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 40.32 ft - (12290 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 289.386 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.22 ft - (9516 mm) |
| Foot | * 16.83 ft - (5130 mm) |
| Leech | * 26.84 ft - (8181 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.46 ft - (4407 mm) |
| Deck Angle | * 12 ° |
| Area | * 225.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.07 ft - (11299 mm) |
| Foot | * 20.45 ft - (6233 mm) |
| Leech | * 34.73 ft - (10586 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.86 ft - (5749 mm) |
| Deck Angle | * 4 ° |
| Area | * 349.56 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 37.07 ft - (11299 mm) |
| Foot | * 20.74 ft - (6322 mm) |
| Leech | * 34.1 ft - (10394 mm) |
| Perc LP | * 165 % |
| Area | * 576.62 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
