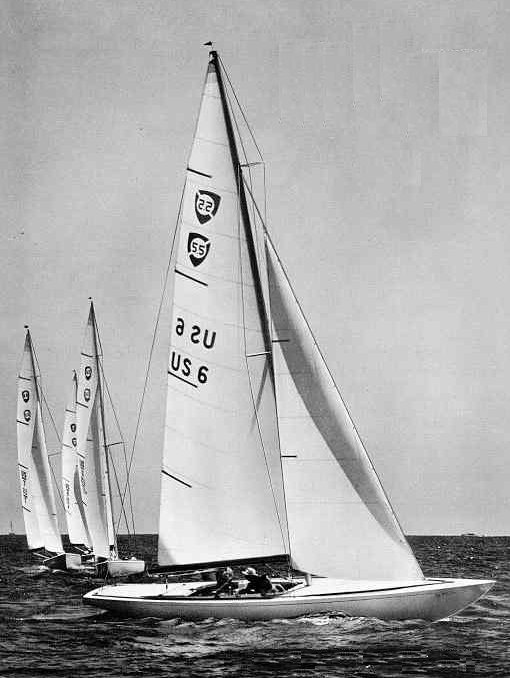

Columbia 5.5M
Description
The Columbia 5.5M is a mid-sized cruiser. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 32.420 ft |
| LOA | 32.420 ft |
| LWL | 22.580 ft |
| Beam | 6.250 ft |
| Displacement | 4500 lb |
| Max Draft | 4.330 ft |
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 8.50 ft |
| p | 34 ft |
| e | 11.42 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 8.50 ft | 34 ft | 11.42 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 11.42 ft - (3481 mm) |
| Leech-AftHdBd | * 35.25 ft - (10744 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.49 ft - (10817 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 200.49 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 24.94 ft - (7602 mm) |
| Foot | * 11.06 ft - (3371 mm) |
| Leech | * 22.06 ft - (6724 mm) |
| Percentage LP | * 115.06 % |
| Length Perpendicular | * 9.78 ft - (2981 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 121.95 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.62 ft - (9028 mm) |
| Foot | * 13.55 ft - (4130 mm) |
| Leech | * 28.09 ft - (8562 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.75 ft - (3886 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 188.81 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 29.146 ft - (8884 mm) |
| MidGirth | 22 ft - (6706 mm) |
| Foot | 24 ft - (7315 mm) |
| Perc LP | * 180 |
| Area | * 595 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
