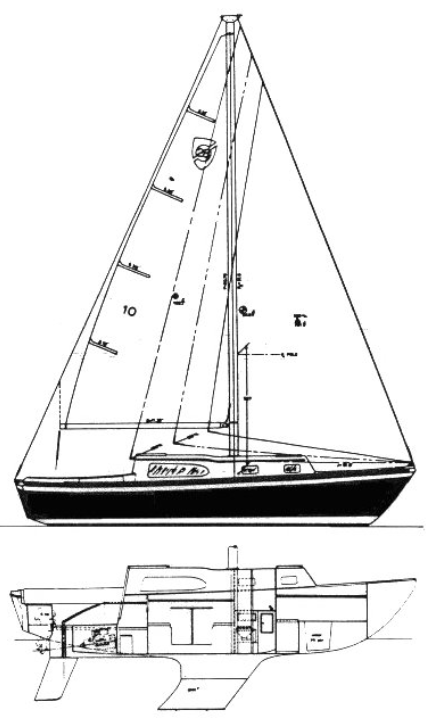

Columbia 28
Description
The Columbia 28 is a 27’7” (8.41 m) monohull sailboat designed by William Crealock and built by Columbia Yachts starting in 1967, with 553 units produced. It’s a masthead sloop with a fin keel and spade rudder, constructed from solid fiberglass laminate. Key specs include a 21.67 ft (6.61 m) waterline length, 8.5 ft (2.59 m) beam, 4.33 ft (1.32 m) draft, 6,500 lb (2,948 kg) displacement, and 2,800 lb (1,270 kg) lead ballast. The sail area is 343 ft² (31.87 m²), with a sail area/displacement ratio of 15.81, indicating moderate power, LWL 21' 8". Beam 8' 6". Draft 4' 10". Displacement 6,800 lbs. Ballast 3,000 lbs.
Construction Details
| Designer | Wm Crealock |
|---|---|
| Builder | Columbia Yachts |
| Length | 27.580 ft |
| LOA | 27.580 ft |
| LWL | 21.670 ft |
| Beam | 8.500 ft |
| Displacement | 6500 lb |
| Max Draft | 4.330 ft |
The standard boat dimensions
| i | 31.50 ft |
|---|---|
| j | 12 ft |
| p | 26.75 ft |
| e | 11.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31.50 ft | 12 ft | 26.75 ft | 11.33 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 26.75 ft - (8153 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | * 28.43 ft - (8665 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 28.68 ft - (8742 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 156.57 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.08 ft - (8559 mm) |
| Foot | 14.08 ft - (4292 mm) |
| Leech | 24.42 ft - (7443 mm) |
| Percentage LP | * 102 % |
| Length Perpendicular | * 12.24 ft - (3731 mm) |
| Deck Angle | * 8.73 ° |
| Area | * 171.91 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 32.17 ft - (9805 mm) |
| Foot | 19.42 ft - (5919 mm) |
| Leech | 30.83 ft - (9397 mm) |
| Percentage LP | * 150.42 % |
| Length Perpendicular | * 18.05 ft - (5502 mm) |
| Deck Angle | * 0.82 ° |
| Area | * 290.28 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 31 ft - (9449 mm) |
| Foot | 19.75 ft - (6020 mm) |
| Leech | 29 ft - (8839 mm) |
| Percentage LP | * 149.58 % |
| Length Perpendicular | * 17.95 ft - (5471 mm) |
| Deck Angle | * 3.76 ° |
| Area | * 278.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 33 ft - (10058 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 30 ft - (9144 mm) |
| Perc LP | * 165 % |
| Area | * 495 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 32.02 ft - (9760 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 % |
| Area | * 588 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
