Columbia 22
Description
The Columbia 22 is a trailerable monohull sailboat designed by William Crealock and built by Columbia Yachts in the USA from 1966 to 1972. Known for its lightweight construction, high performance, and affordability, it was designed as a day-sailor or coastal cruiser, ideal for short trips or casual racing. LWL: 20' 1" Beam: 7' 9" Draft: (deep)3' 2"(shoal)2' 6"(cb Up)2' 6" (Dwn): 4'10" Displacement: (deep)2200 lbs. (shoal)2385 (cb)2385 lbs. Ballast: (deep)1006 lbs.(iron) (shoal)1300 lbs. (cb)1300 lbs.
Construction Details
| Designer | Wm Crealock |
|---|---|
| Builder | Columbia Yachts |
| Length | 22.000 ft |
| LOA | 22.000 ft |
| LWL | 20.080 ft |
| Beam | 7.750 ft |
| Displacement | 2200 lb |
| Max Draft | 3.170 ft |
The standard boat dimensions
| i | 26.58 ft |
|---|---|
| j | 8.58 ft |
| p | 23.50 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.58 ft | 8.58 ft | 23.50 ft | 10.25 ft | - | - |

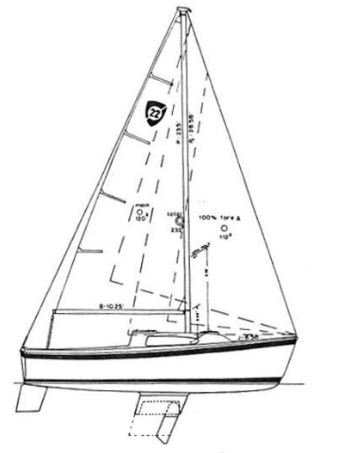

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 10.25 ft - (3124 mm) |
| Leech | * 25.13 ft - (7660 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 25.31 ft - (7714 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 124.51 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.5 ft - (7772 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | 23.25 ft - (7087 mm) |
| Percentage LP | * 120.28 % |
| Length Perpendicular | * 10.32 ft - (3146 mm) |
| Deck Angle | * 6.44 ° |
| Area | * 131.63 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 10.42 ft - (3176 mm) |
| Leech | 20 ft - (6096 mm) |
| Percentage LP | * 110.26 % |
| Length Perpendicular | * 9.46 ft - (2883 mm) |
| Deck Angle | * 6.95 ° |
| Area | * 104.02 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.53 ft - (8086 mm) |
| Foot | * 13.87 ft - (4228 mm) |
| Leech | * 24.94 ft - (7602 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.87 ft - (3923 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 170.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.25 ft - (8001 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 25.42 ft - (7748 mm) |
| Percentage LP | * 149.18 % |
| Length Perpendicular | * 12.8 ft - (3901 mm) |
| Deck Angle | * 0.63 ° |
| Area | * 168.01 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 26.53 ft - (8086 mm) |
| Foot | * 14.16 ft - (4316 mm) |
| Leech | * 24.41 ft - (7440 mm) |
| Perc LP | * 165 % |
| Area | * 282 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 26.53 ft - (8086 mm) |
| MidGirth | * 15.44 ft - (4706 mm) |
| Foot | * 15.44 ft - (4706 mm) |
| Perc LP | * 180 % |
| Area | * 348 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 15.25 ft - (4648 mm) |
| Foot | 6.5 ft - (1981 mm) |
| Leech | 12.58 ft - (3834 mm) |
| Perc LP | * 61.31 % |
| Length Perp | * 5.26 ft - (1603 mm) |
| Deck Angle | * 18.12 ° |
| Area | * 40.09 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
