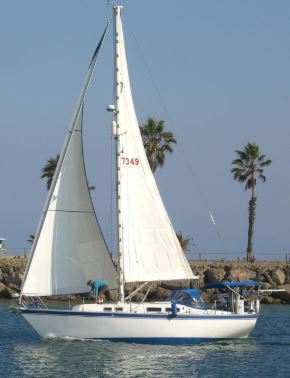

Columbia 10.7 Meter
Description
The Columbia 10.7 was designed by Alan Payne, known for his work on America’s Cup yachts, and built by Columbia Yachts, a pioneer in fiberglass sailboats. The “10.7” refers to its length in meters. Approximately 200 were built starting in 1976, with the first 66 constructed by Whittaker Corp. at their Chesapeake plant, and later units at other locations through 1979. Length Overall 35'2" 10.7 m Designed Load Waterline Length 26'7" 8.1 m Beam 11'4" 3.45 m Draft 5'5" 1.65 m Displacement 13,900 lbs. 6304 kg Ballast 5,300 lbs. 2404 kg
Construction Details
| Designer | Alan Payne |
|---|---|
| Builder | Columbia Yachts |
| Length | 35.170 ft |
| LOA | 43.750 ft |
| LWL | 32.670 ft |
| Beam | 12.330 ft |
| Max Draft | 7.000 ft |
The standard boat dimensions
| i | 42.80 ft |
|---|---|
| j | 14.77 ft |
| p | 38 ft |
| e | 11.70 ft |
| p2 | 26.08 ft |
| e2 | 12.11 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42.80 ft | 14.77 ft | 38 ft | 11.70 ft | 26.08 ft | 12.11 ft |
Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 11.7 ft - (3566 mm) |
| Leech | * 39.13 ft - (11927 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 39.37 ft - (12000 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 229.35 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.22 ft - (11040 mm) |
| Foot | * 19.83 ft - (6044 mm) |
| Leech | * 31.05 ft - (9464 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 16.99 ft - (5179 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 307.65 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42.5 ft - (12954 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 38 ft - (11582 mm) |
| Percentage LP | * 90.12 % |
| Length Perpendicular | * 13.31 ft - (4057 mm) |
| Deck Angle | * 8.39 ° |
| Area | * 282.93 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.01 ft - (13109 mm) |
| Foot | * 24.08 ft - (7340 mm) |
| Leech | * 40.24 ft - (12265 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 22.16 ft - (6754 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 476.56 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 43.01 ft - (13109 mm) |
| Foot | * 24.37 ft - (7428 mm) |
| Leech | * 39.57 ft - (12061 mm) |
| Perc LP | * 165 % |
| Area | * 786 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 43.01 ft - (13109 mm) |
| MidGirth | * 26.59 ft - (8105 mm) |
| Foot | * 26.59 ft - (8105 mm) |
| Perc LP | * 180 % |
| Area | * 972 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
