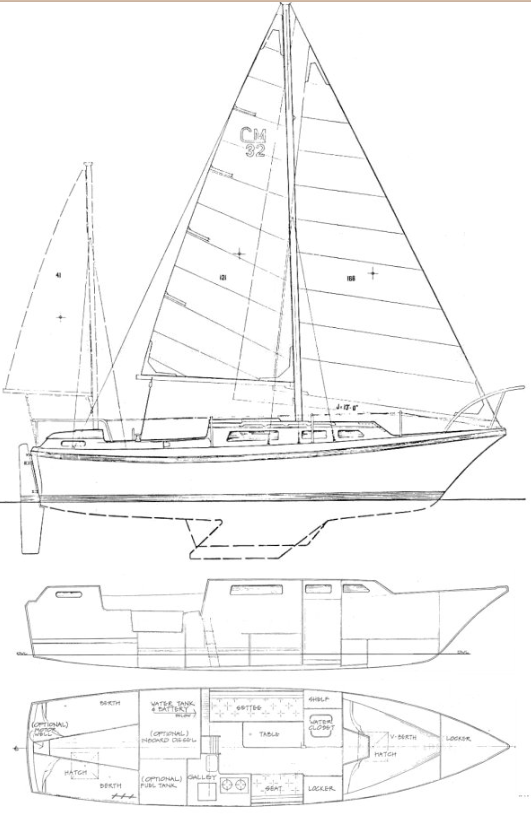

CLIPPER 32 KETCH
Description
The CLIPPER 32 KETCH is a sailboat.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 32.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | 13 ft |
| p | 23.92 ft |
| e | 10 ft |
| p2 | 14.50 ft |
| e2 | 5.67 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | 13 ft | 23.92 ft | 10 ft | 14.50 ft | 5.67 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | DRIFTER |
|---|---|
| Luff | 19.92 ft - (6072 mm) |
| Foot | 12.75 ft - (3886 mm) |
| Leech | 15.67 ft - (4776 mm) |
| Area | 99.86 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 5.67 ft - (1728 mm) |
| Leech-AftHdBd | * 15.27 ft - (4654 mm) |
| Tack Ang | * 87.96 ° |
| Diag (clew/head) | * 15.38 ft - (4688 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | 41.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.25 ft - (8611 mm) |
| Foot | 10.83 ft - (3301 mm) |
| Leech | 23.92 ft - (7291 mm) |
| Length Perpendicular | 8.97 ft - (2734 mm) |
| Area | 126.65 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23.92 ft - (7291 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech-AftHdBd | * 25.46 ft - (7760 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 25.6 ft - (7803 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 119.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.92 ft - (9120 mm) |
| Foot | 21.58 ft - (6578 mm) |
| Leech | 28.5 ft - (8687 mm) |
| Length Perpendicular | 19.54 ft - (5956 mm) |
| Area | 292.25 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
