Clipper 30
Description
The Clipper Marine 30 is a trailerable, monohull sailboat designed by William Crealock and built by Clipper Marine in the USA starting in 1974. Known for its lightweight construction and versatility, it was intended for coastal cruising and day sailing, with some models featuring a swing keel for shallow-water access.
Construction Details
| Designer | Wm Crealock |
|---|---|
| Builder | Clipper Marine |
| Length | 30.000 ft |
| LOA | 59.920 ft |
| LWL | 52.250 ft |
| Beam | 15.580 ft |
| Displacement | 52908 lb |
| Max Draft | 7.250 ft |
The standard boat dimensions
| i | 27.50 ft |
|---|---|
| j | 12.75 ft |
| p | 23 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 27.50 ft | 12.75 ft | 23 ft | 10 ft | - | - |

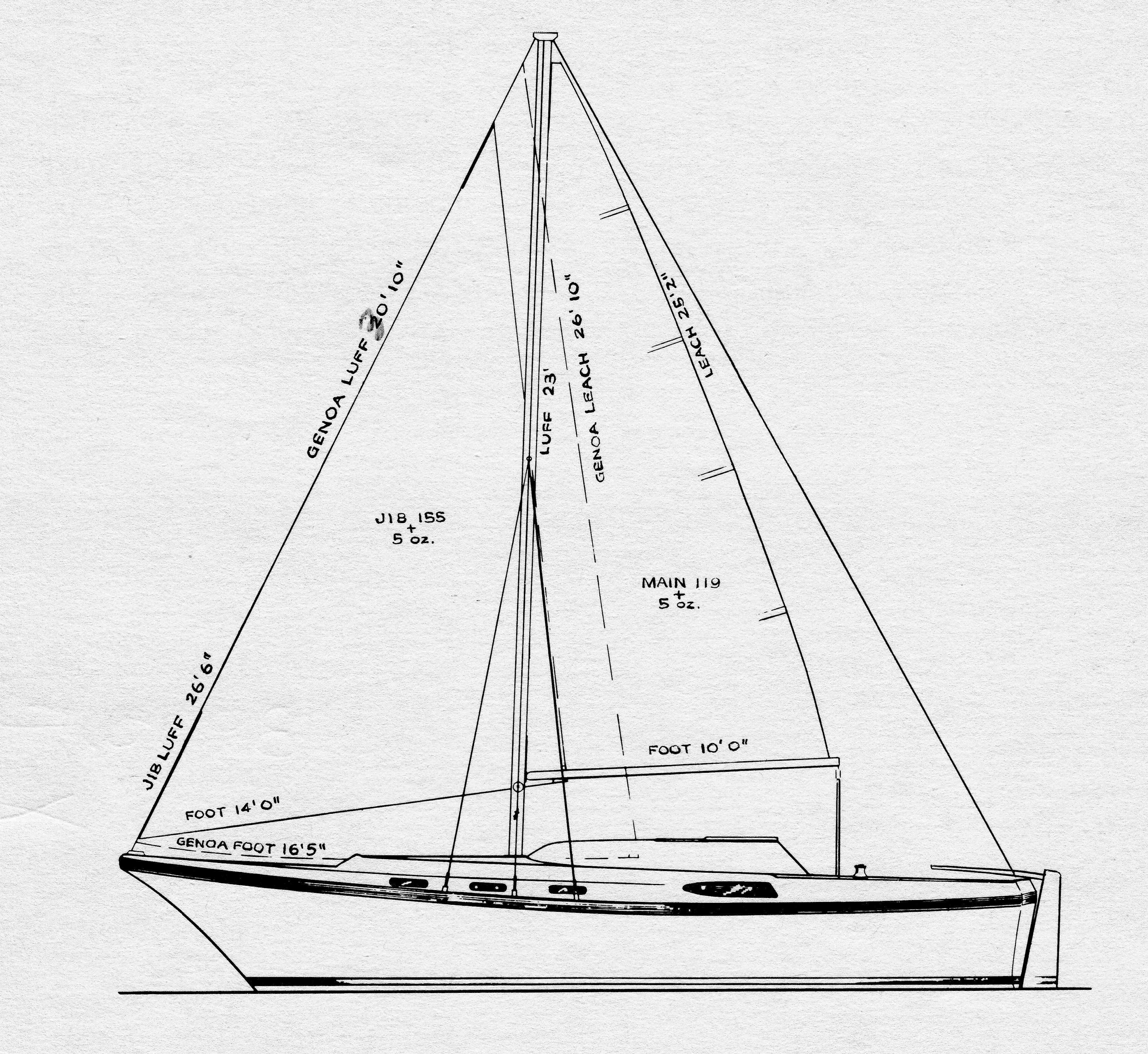

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | * 24.61 ft - (7501 mm) |
| Tack Angle | * 88.01 ° |
| Diagonal | * 24.76 ft - (7547 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | 114.85 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 21 ft - (6401 mm) |
| Length Perpendicular | 11.03 ft - (3362 mm) |
| Area | 146.09 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 16.42 ft - (5005 mm) |
| Leech | 26.83 ft - (8178 mm) |
| Length Perpendicular | 14.97 ft - (4563 mm) |
| Area | 217.12 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 28.8 ft - (8778 mm) |
| MidGirth | * 22.95 ft - (6995 mm) |
| Foot | * 22.95 ft - (6995 mm) |
| Perc LP | * 180 % |
| Area | 561.82 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
