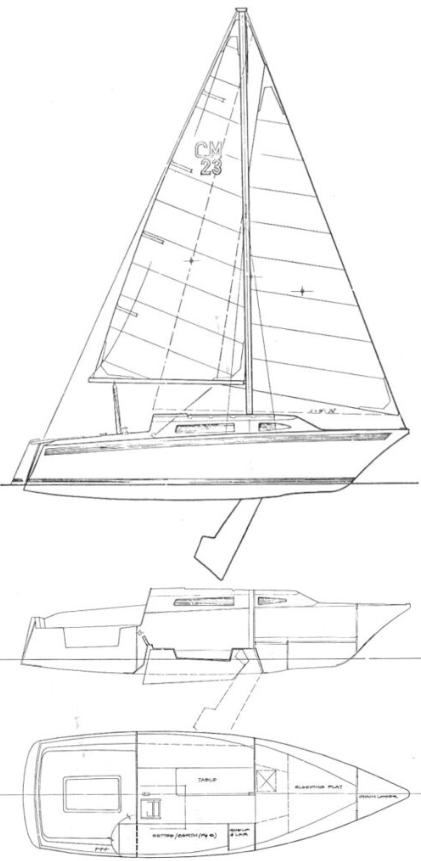

Clipper 23
Description
The Clipper Marine 23, also known as the Clipper 23, is a trailerable sailboat designed by William Crealock and first built in 1976 by Clipper Marine in Santa Ana, California. After Clipper Marine went out of business, a twin-keel version was produced by Sawyer Marine in Canada starting in 1984.
Construction Details
| Designer | Wm Crealock |
|---|---|
| Builder | Clipper Marine |
| Length | 23.000 ft |
| LOA | 35.250 ft |
| LWL | 26.670 ft |
| Beam | 11.330 ft |
| Max Draft | 5.920 ft |
| Min Draft | 1.790 ft |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 9.50 ft |
| p | 23.67 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26 ft | 9.50 ft | 23.67 ft | 9 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.67 ft - (7215 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech | * 24.84 ft - (7571 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 25.03 ft - (7629 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 109.86 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 22.14 ft - (6748 mm) |
| Foot | * 12.89 ft - (3929 mm) |
| Leech | * 18.8 ft - (5730 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.93 ft - (3331 mm) |
| Deck Angle | * 12 ° |
| Area | 120.94 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.3 ft - (8016 mm) |
| Foot | * 15.61 ft - (4758 mm) |
| Leech | * 24.5 ft - (7468 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.25 ft - (4343 mm) |
| Deck Angle | * 4 ° |
| Area | 187.4 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 26.3 ft - (8016 mm) |
| MidGirth | * 17.1 ft - (5212 mm) |
| Foot | * 17.1 ft - (5212 mm) |
| Perc LP | * 180 % |
| Area | 382.27 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
