Clipper 1/4 Ton Cm4
Description
The Clipper Marine 1/4 Ton is a 23’7” (7.19 m) monohull sailboat designed by William Crealock and built by Clipper Marine starting in 1974. It was designed as an IOR (International Offshore Rule) 1/4 Ton racer-cruiser, offering a blend of performance and trailerability.
Construction Details
| Designer | Wm Crealock |
|---|---|
| Builder | Clipper Marine |
| Length | 24.000 ft |
| LOA | 35.250 ft |
| LWL | 26.670 ft |
| Beam | 11.330 ft |
| Max Draft | 5.920 ft |
| Min Draft | 1.790 ft |
The standard boat dimensions
| i | 26.58 ft |
|---|---|
| j | 10.41 ft |
| p | 21.56 ft |
| e | 7.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.58 ft | 10.41 ft | 21.56 ft | 7.50 ft | - | - |

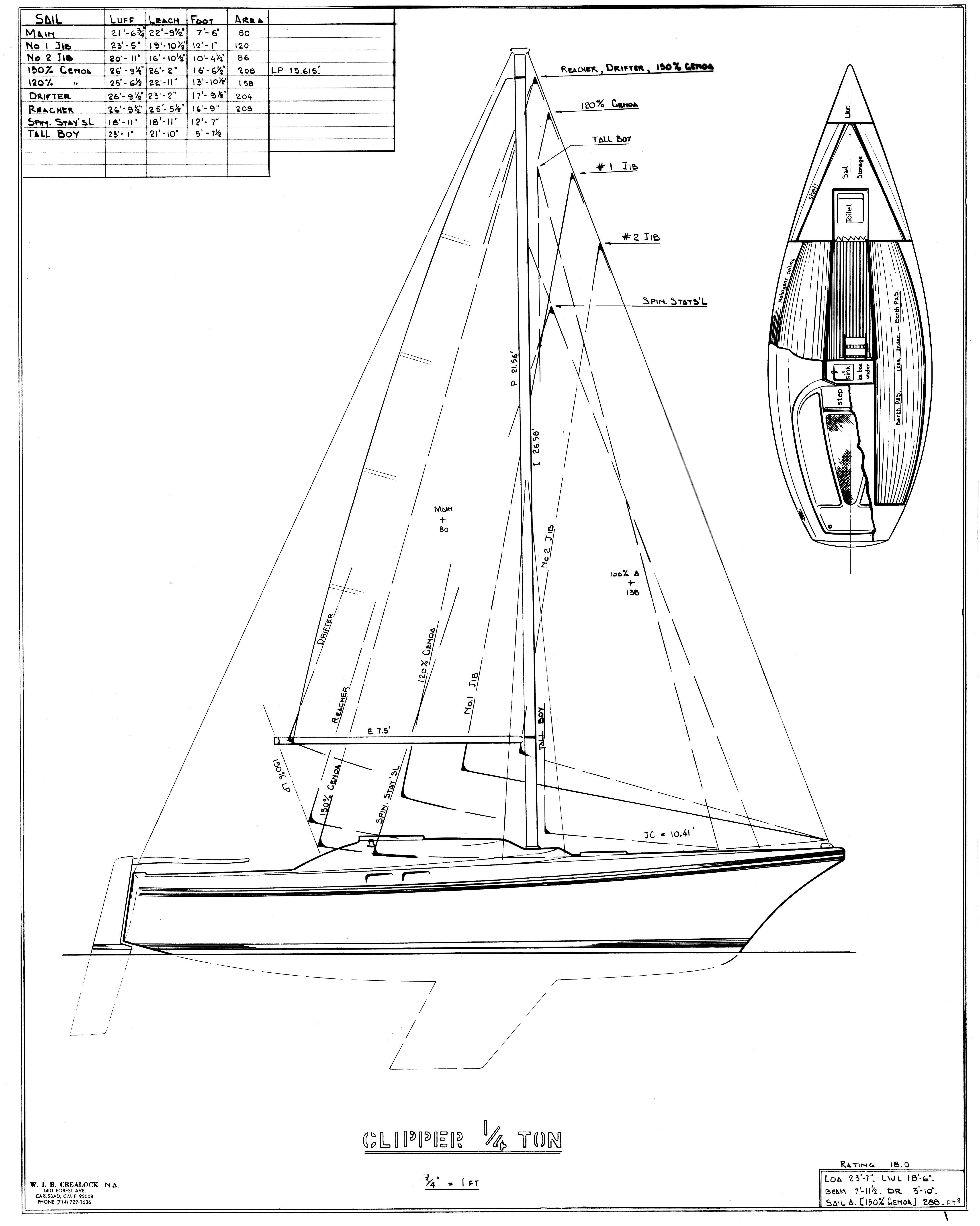

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 21.56 ft - (6571 mm) |
| Foot | 7.5 ft - (2286 mm) |
| Leech | * 22.48 ft - (6852 mm) |
| Tack Angle | * 88.01 ° |
| Diagonal | * 22.58 ft - (6882 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | 80.75 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23.42 ft - (7138 mm) |
| Foot | 12.08 ft - (3682 mm) |
| Leech | 19.88 ft - (6059 mm) |
| Length Perpendicular | 10.25 ft - (3124 mm) |
| Area | 120.06 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.79 ft - (8166 mm) |
| Foot | 16.54 ft - (5041 mm) |
| Leech | 26.17 ft - (7977 mm) |
| Length Perpendicular | 15.52 ft - (4730 mm) |
| Area | 207.89 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 27.12 ft - (8266 mm) |
| MidGirth | * 18.74 ft - (5712 mm) |
| Foot | * 18.74 ft - (5712 mm) |
| Perc LP | * 180 % |
| Area | 431.99 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
