Class C Canoe
Description
The Class C Canoe Sailboat, also known as the 5 Meter class in some contexts, is a traditional sailing canoe recognized by the American Canoe Association (ACA) and used in competitive and recreational sailing. It is part of a broader tradition of canoe sailing that began in the 19th century and has evolved into distinct racing classes, including the Cruising Class (4 Meter), Class C (5 Meter), International Decked Sailing Canoe, and ACA Class (). The Class C canoe is designed for performance sailing, often with a focus on racing, but is also suitable for cruising in protected waters. ACA Class C requires a 44 sq ft high-aspect sleeved lateen sail for racing, designed for cruising, learning, and heavy air sailing (). Other Class C rigs, like the Mad River Canoe rig, may use a 55 sq ft lateen sail
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |

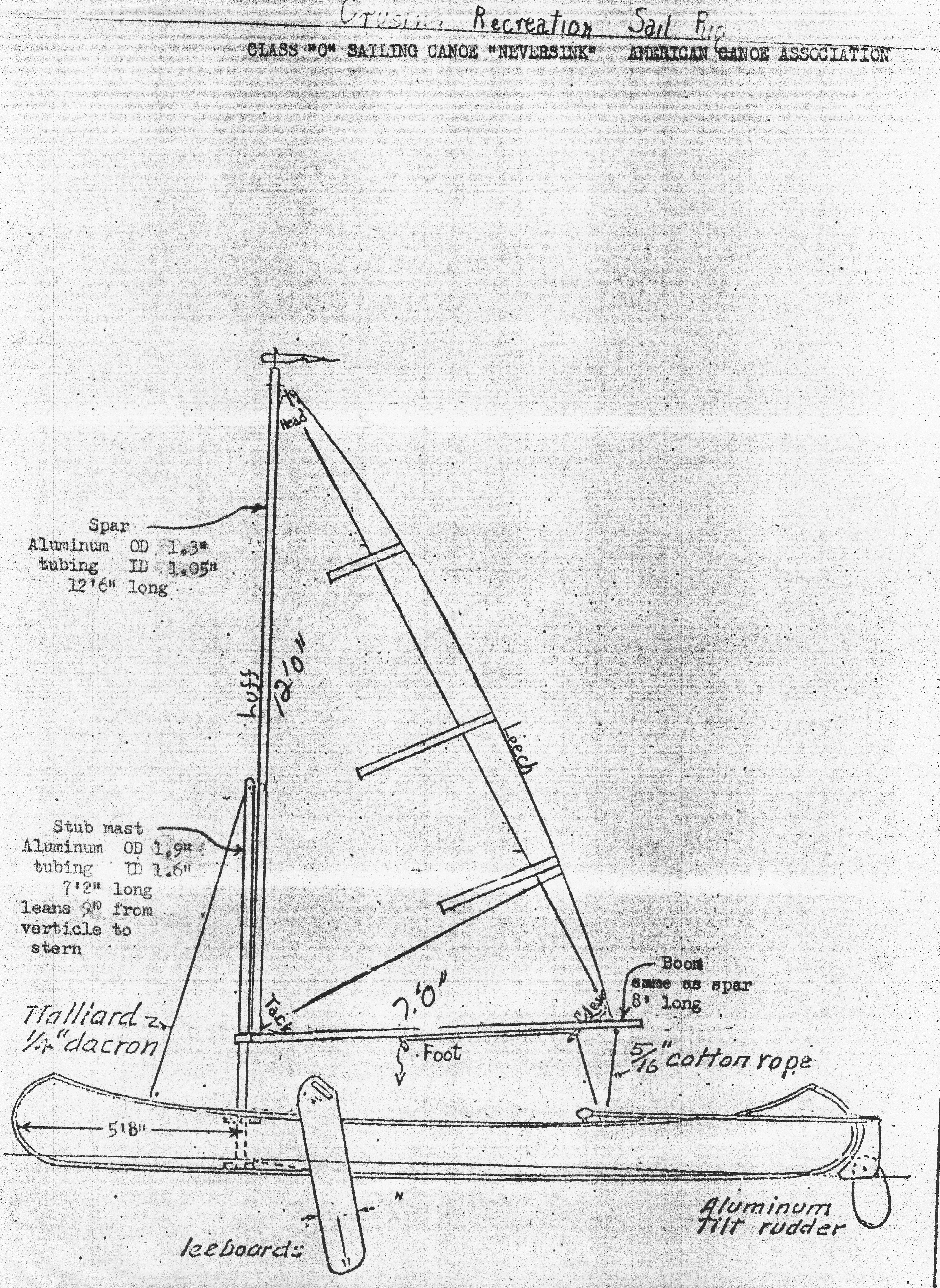

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 12 ft - (3658 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | * 13.53 ft - (4124 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 13.68 ft - (4170 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | 41.93 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
