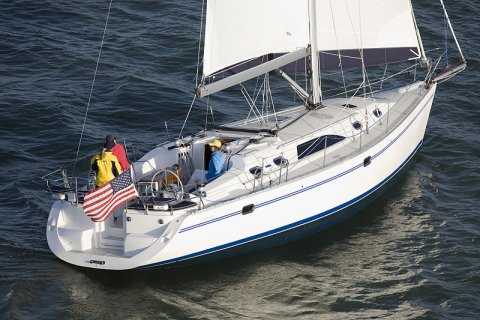

Catalina 445
Description
The Catalina 445 is a performance cruiser designed by Charlie Morgan. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Charlie Morgan |
|---|---|
| Length | 44.290 ft |
| LOA | 44.420 ft |
| LWL | 38.330 ft |
| Beam | 13.580 ft |
| Displacement | 23500 lb |
| Max Draft | 6.920 ft |
The standard boat dimensions
| i | 53.35 ft |
|---|---|
| j | 15.62 ft |
| p | 51.38 ft |
| e | 16.96 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.35 ft | 15.62 ft | 51.38 ft | 16.96 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 51.38 ft - (15661 mm) |
| Foot | * 16.96 ft - (5169 mm) |
| Leech | * 53.27 ft - (16237 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 53.54 ft - (16319 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 446.68 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 51 ft - (15545 mm) |
| Foot | 16.75 ft - (5105 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 100.9 % |
| Length Perpendicular | * 15.76 ft - (4804 mm) |
| Deck Angle | * 3.44 ° |
| Area | * 401.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 24 ft - (7315 mm) |
| Leech | 49.75 ft - (15164 mm) |
| Percentage LP | * 145.45 % |
| Length Perpendicular | * 22.72 ft - (6925 mm) |
| Deck Angle | * 2.49 ° |
| Area | * 590.66 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 53.75 ft - (16383 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 50.75 ft - (15469 mm) |
| Perc LP | * 165 % |
| Area | * 1088 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 55 ft - (16764 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 50 ft - (15240 mm) |
| Perc LP | * 165 % |
| Area | * 1114 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
